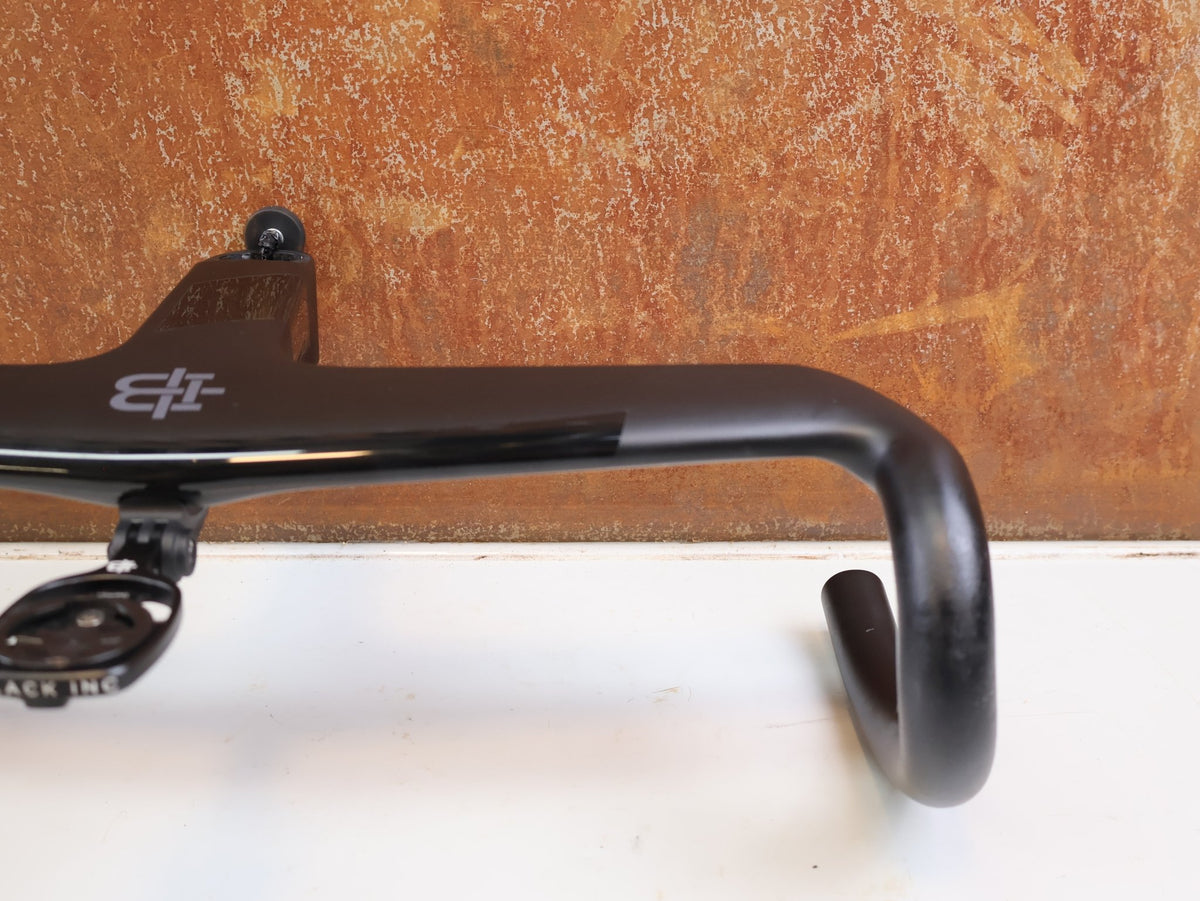

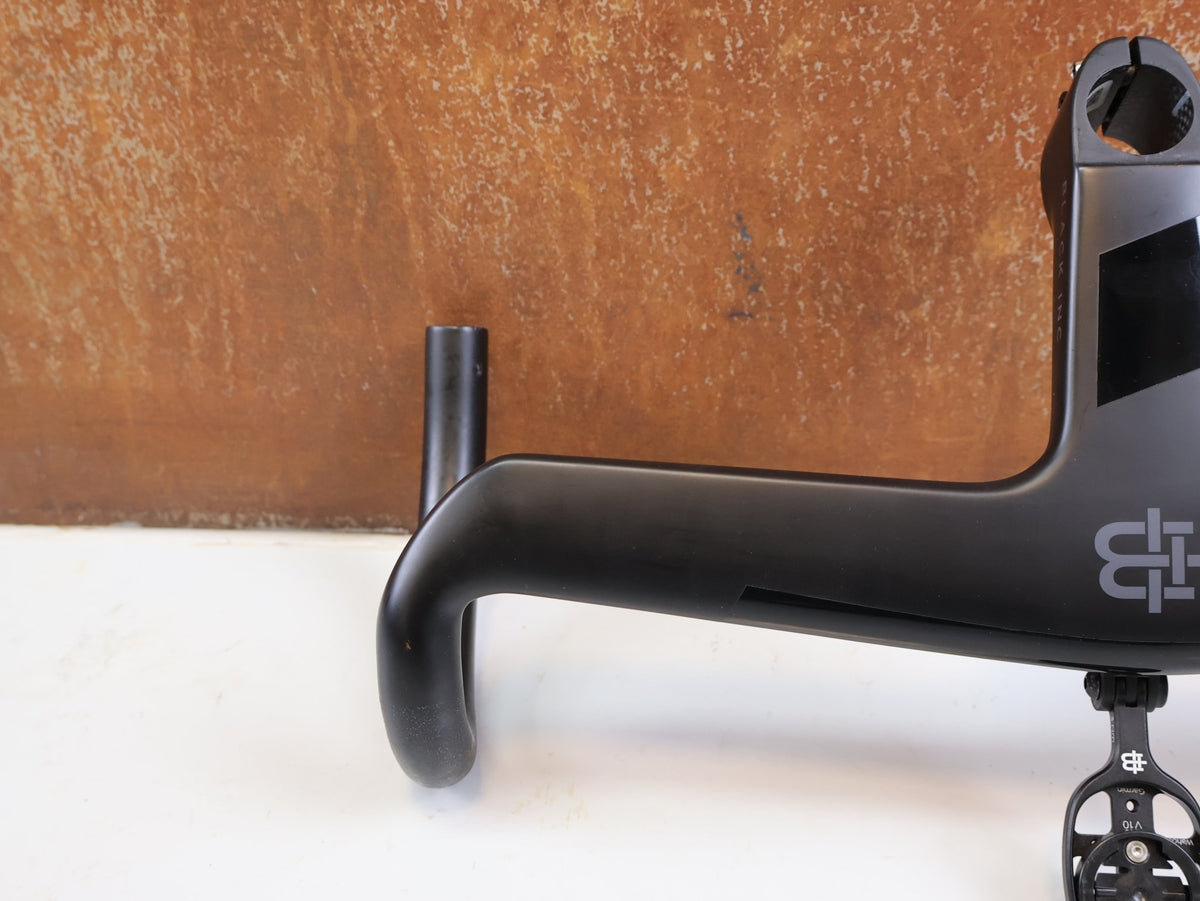

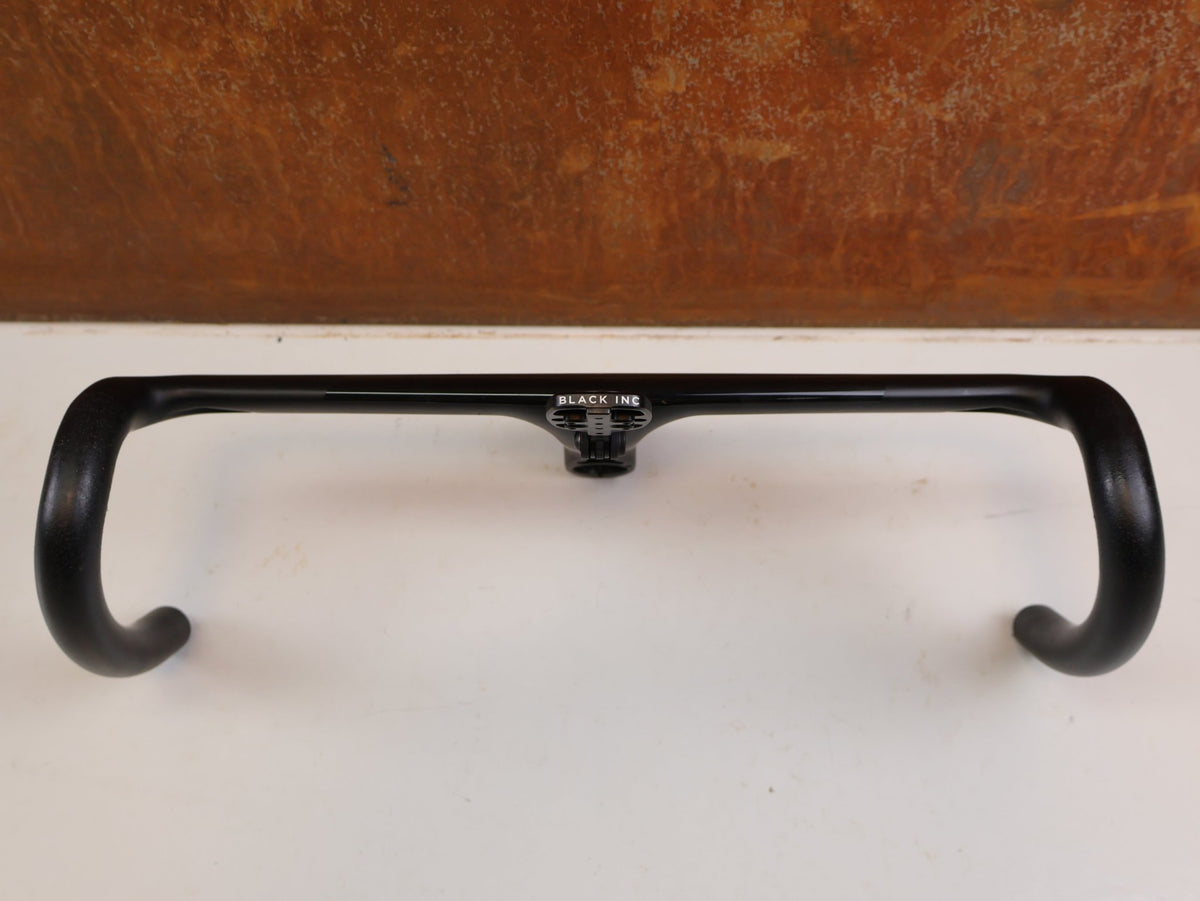

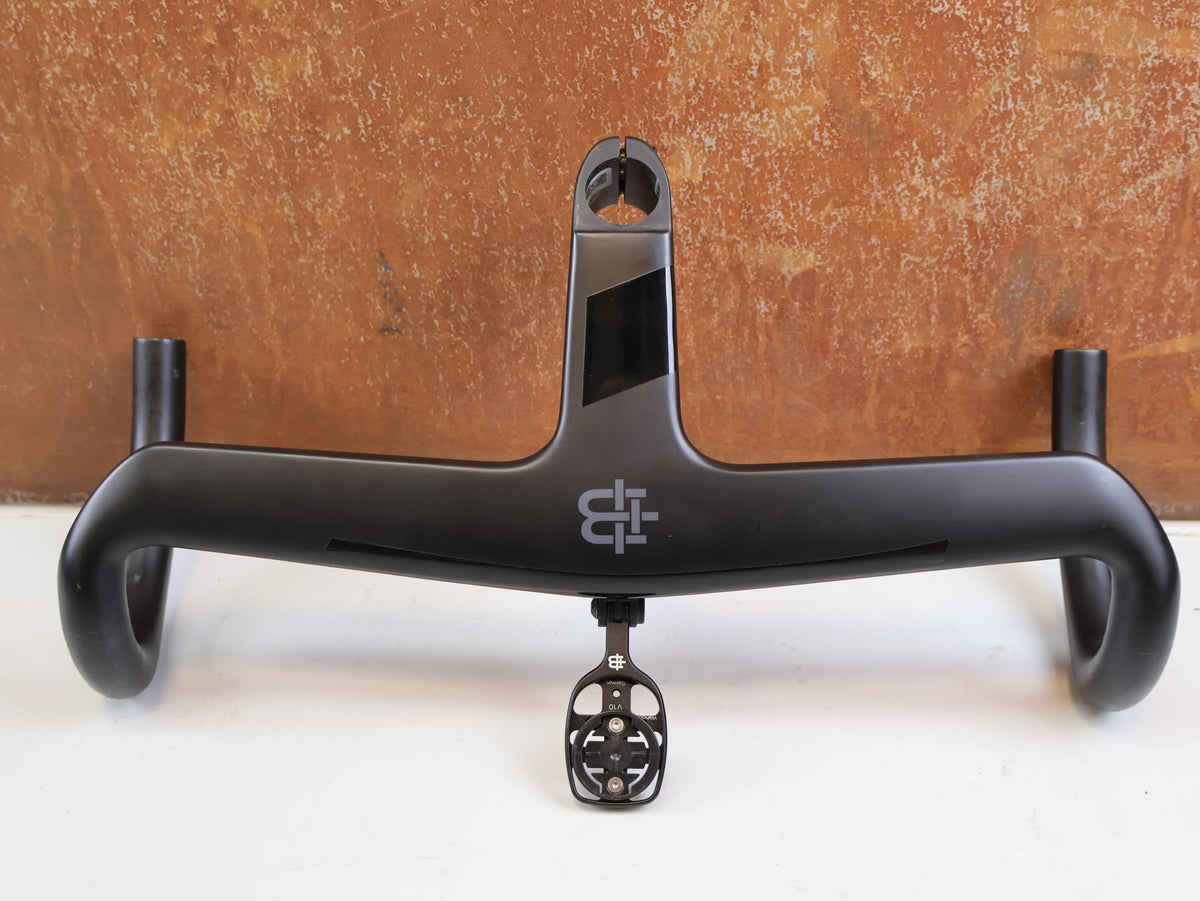

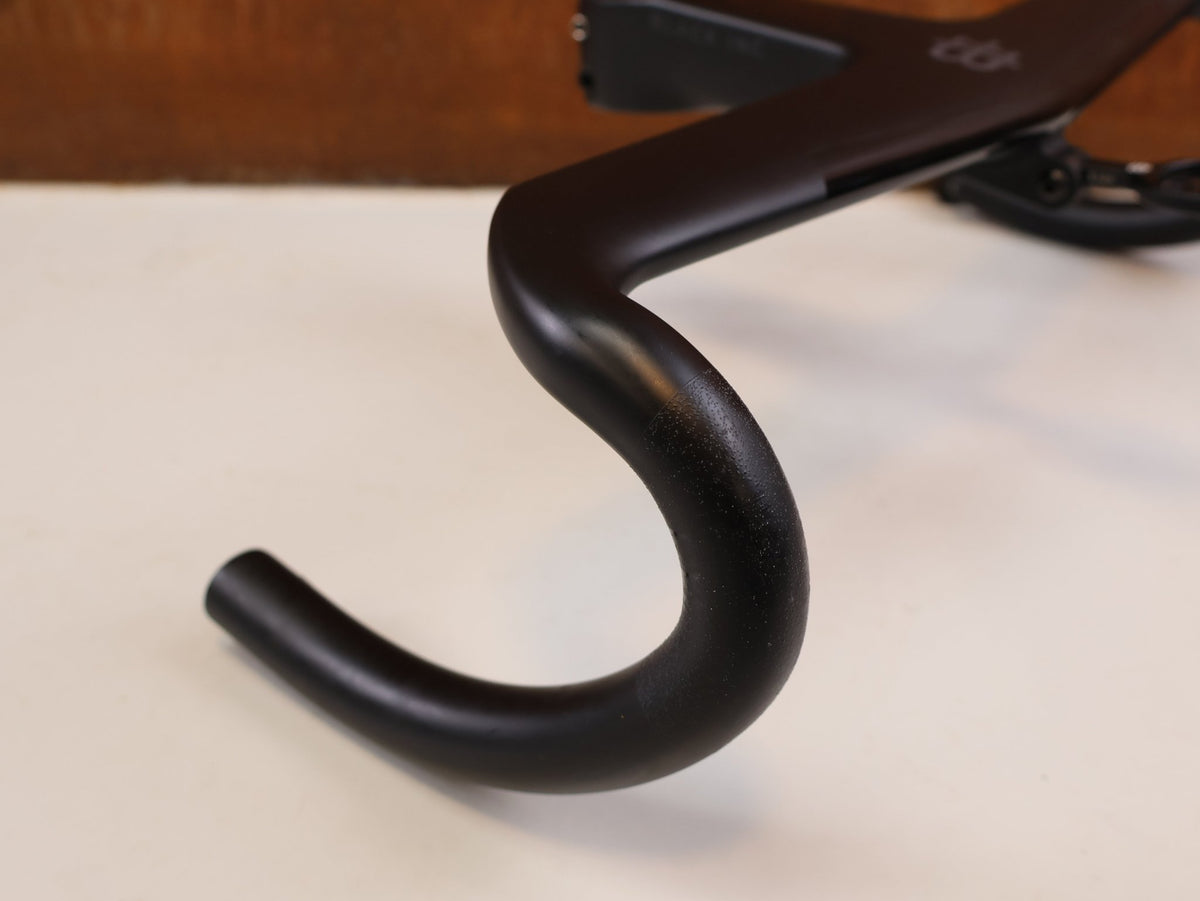

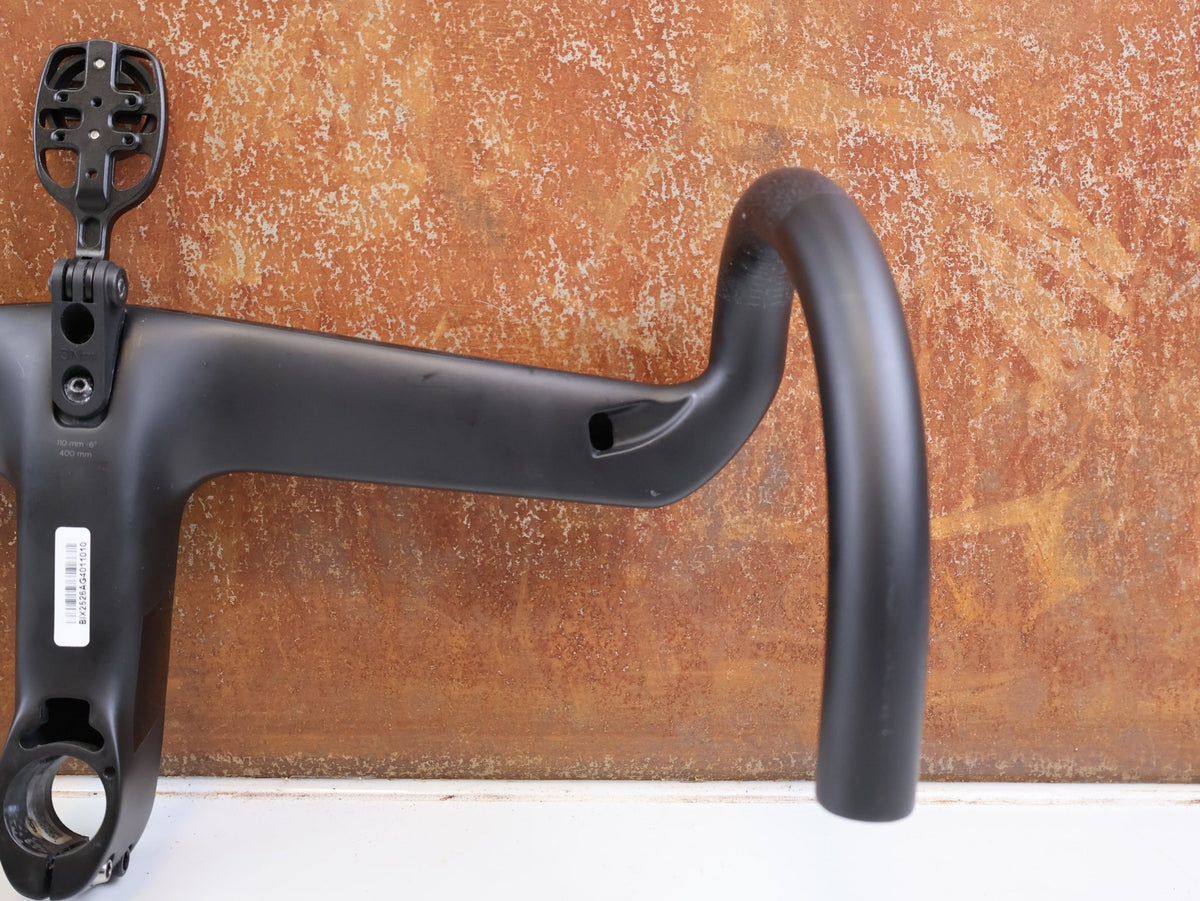

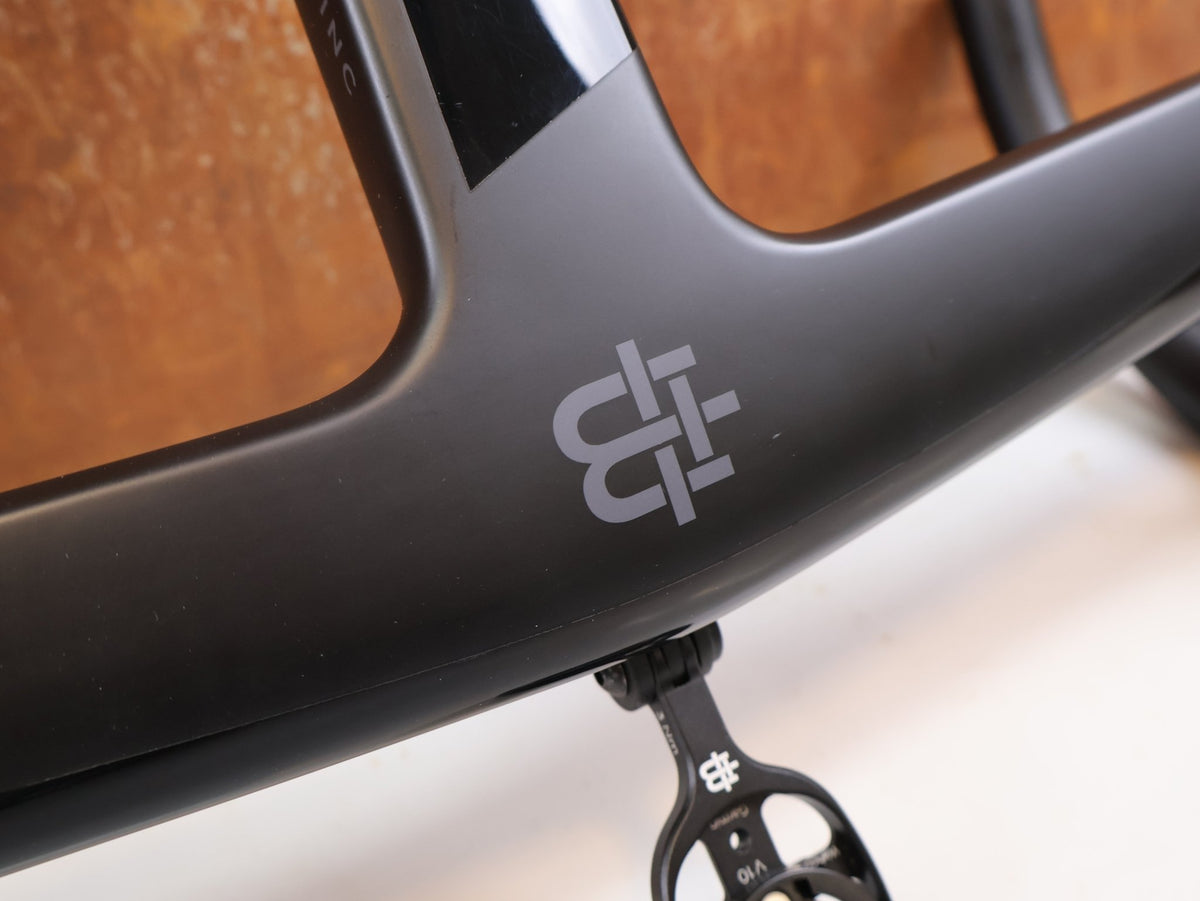

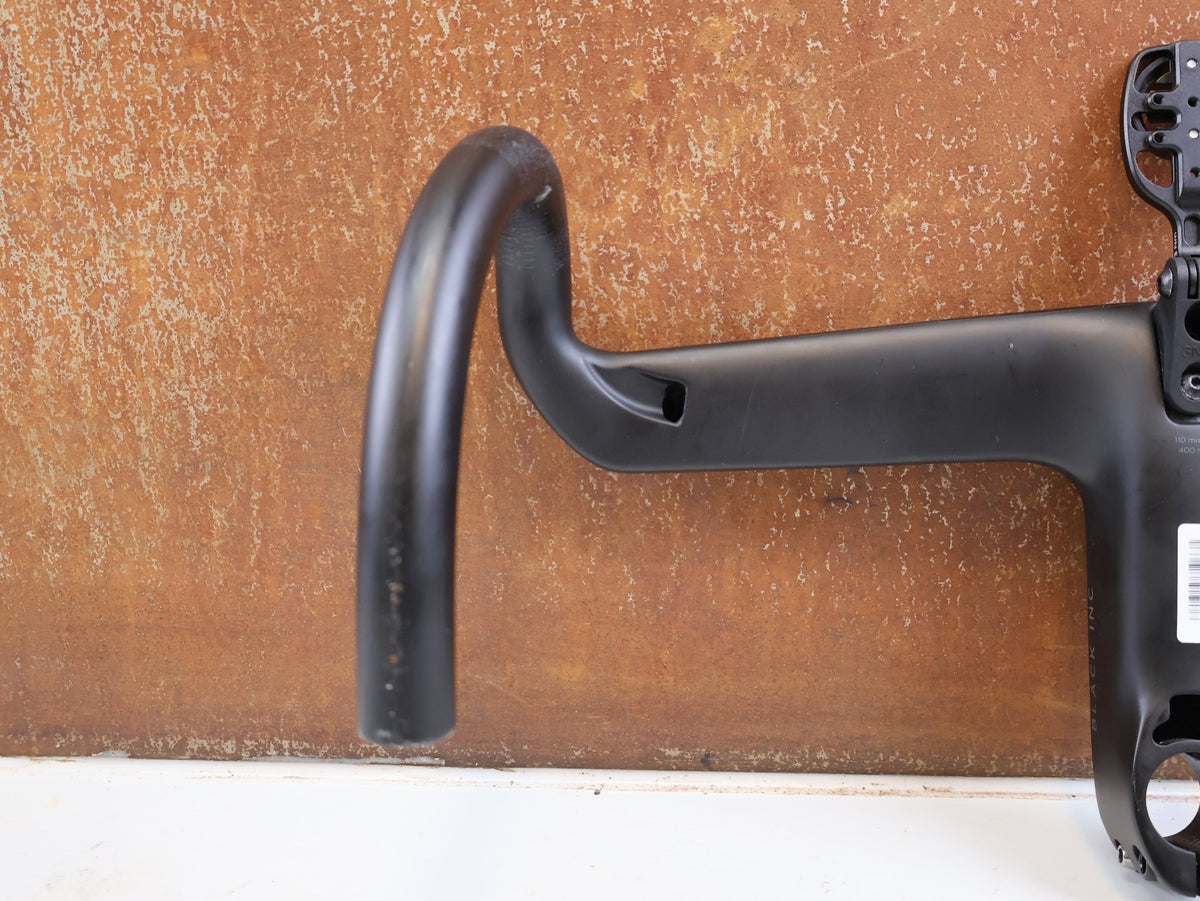

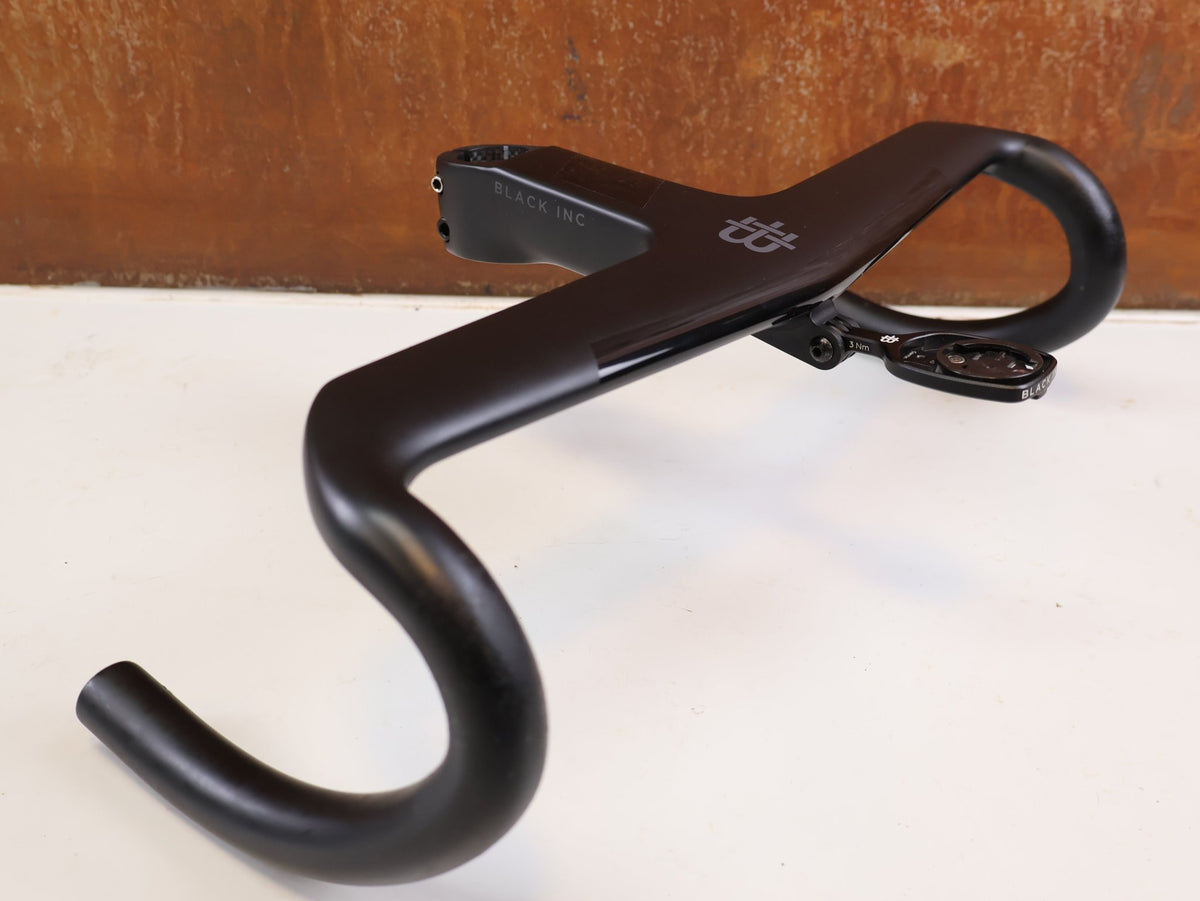

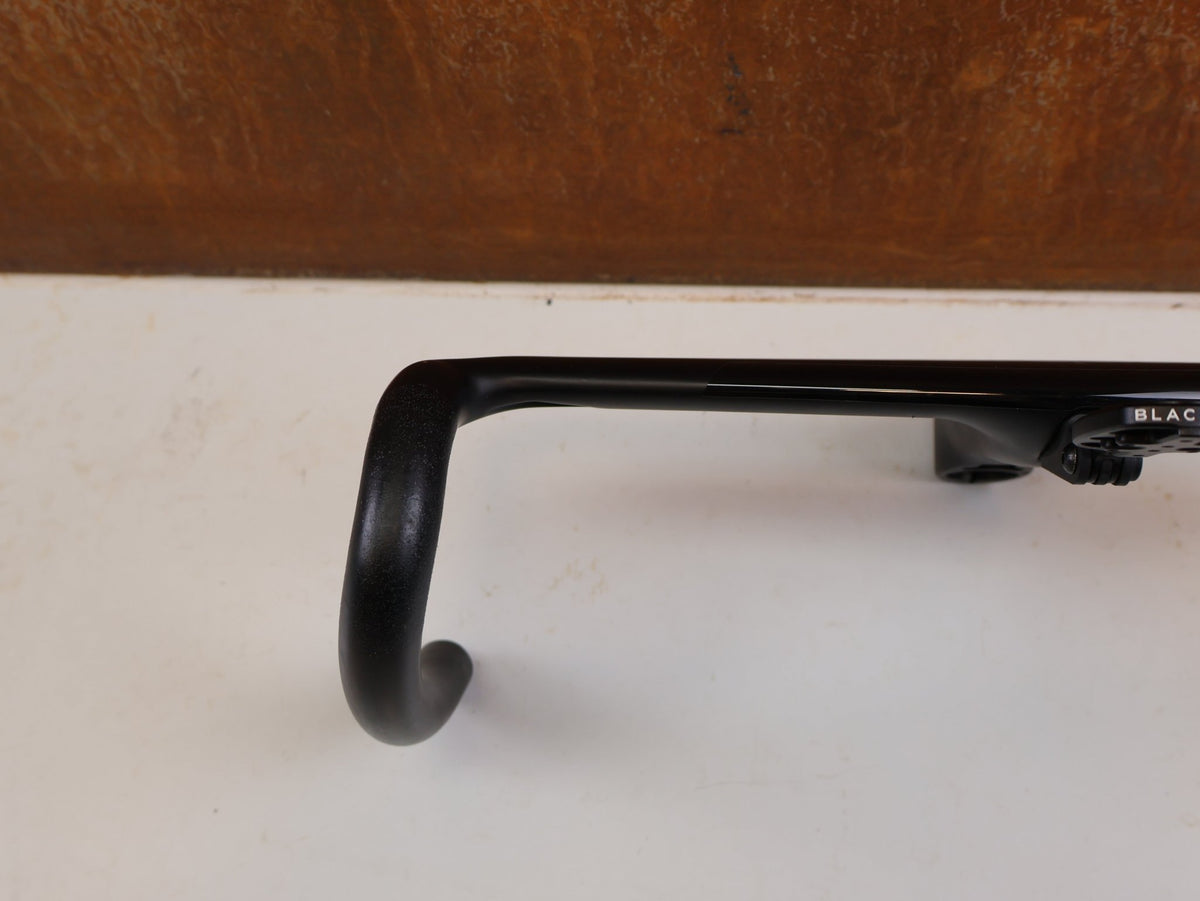

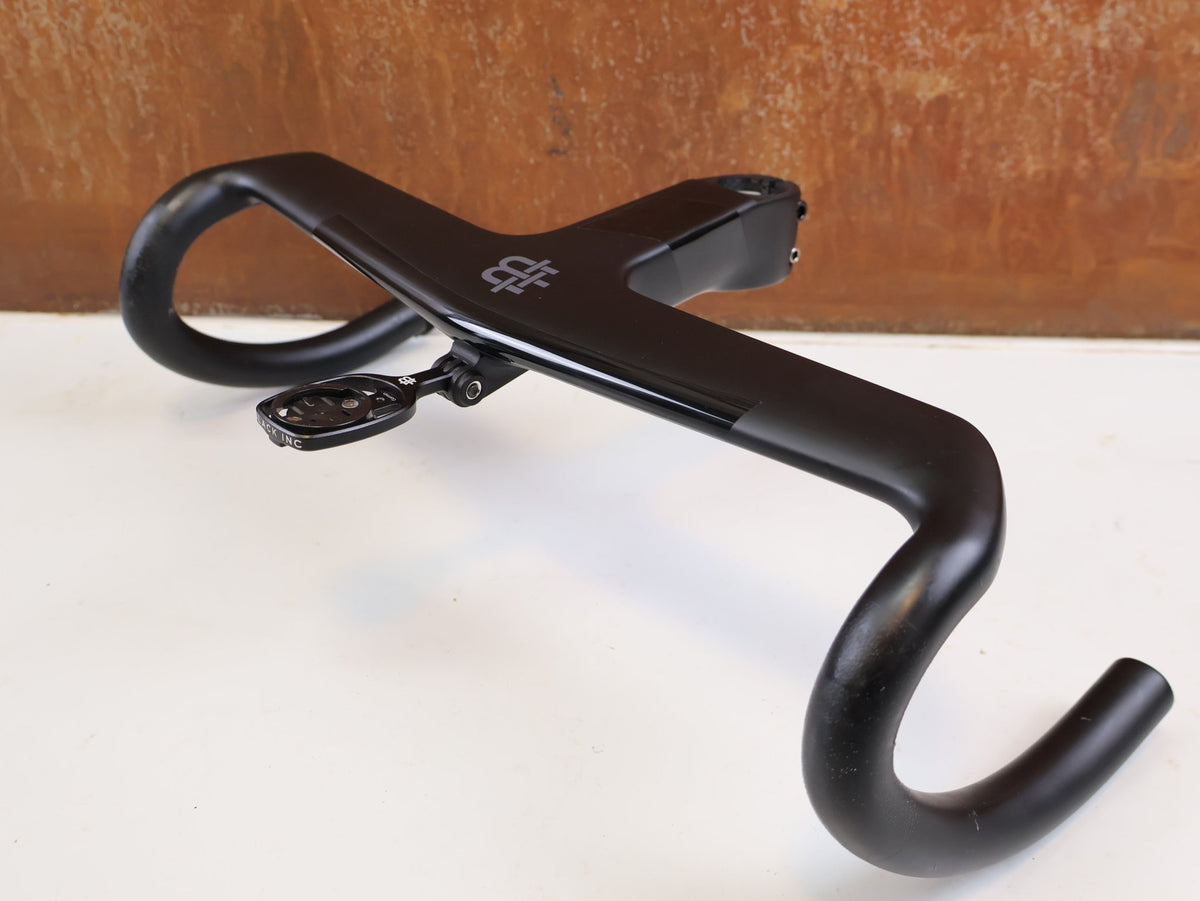

Black Inc Integrated Aero Barstem AB02 Cockpit 40x110mm
Black Inc Integrated Aero Barstem AB02 Cockpit 40x110mm
Anwendung der Differenzbesteuerung (§ 25a UStG)
Couldn't load pickup availability

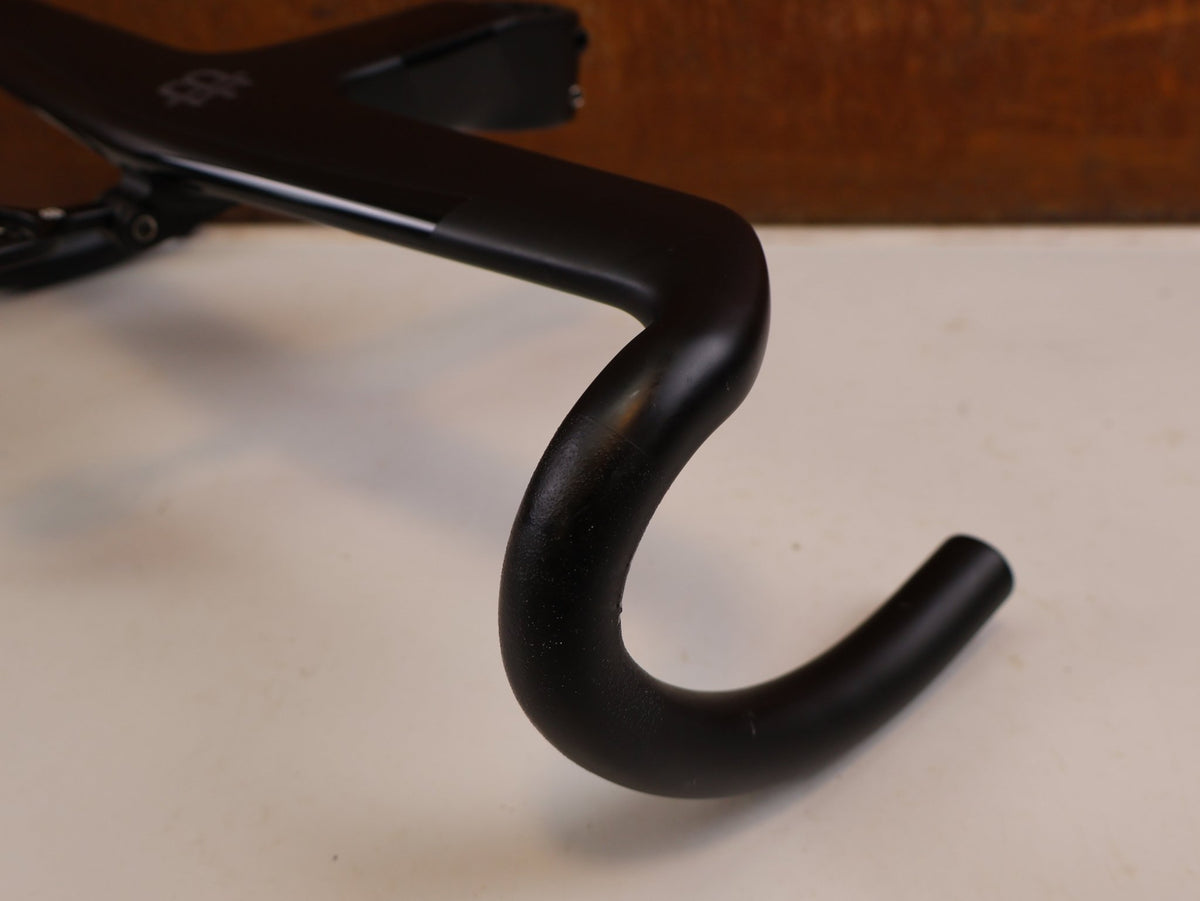

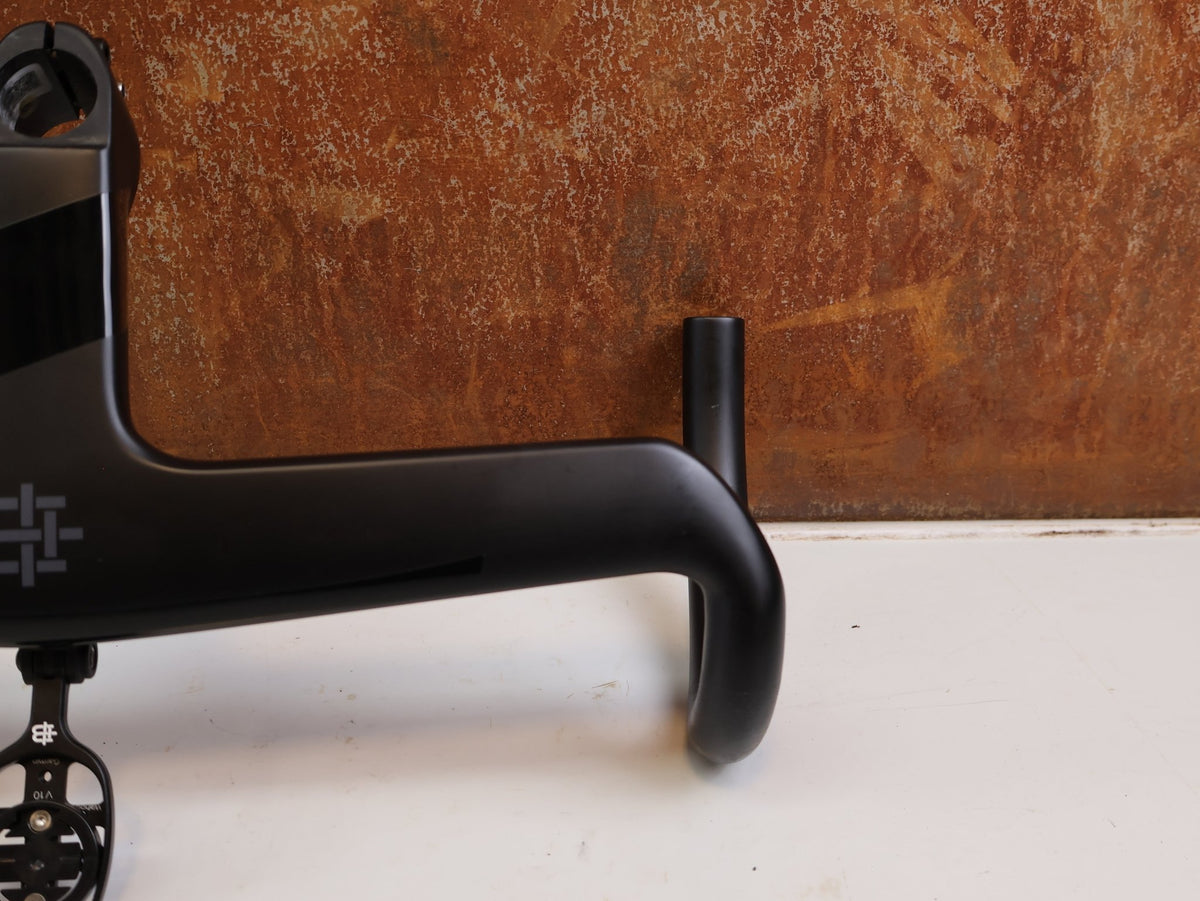

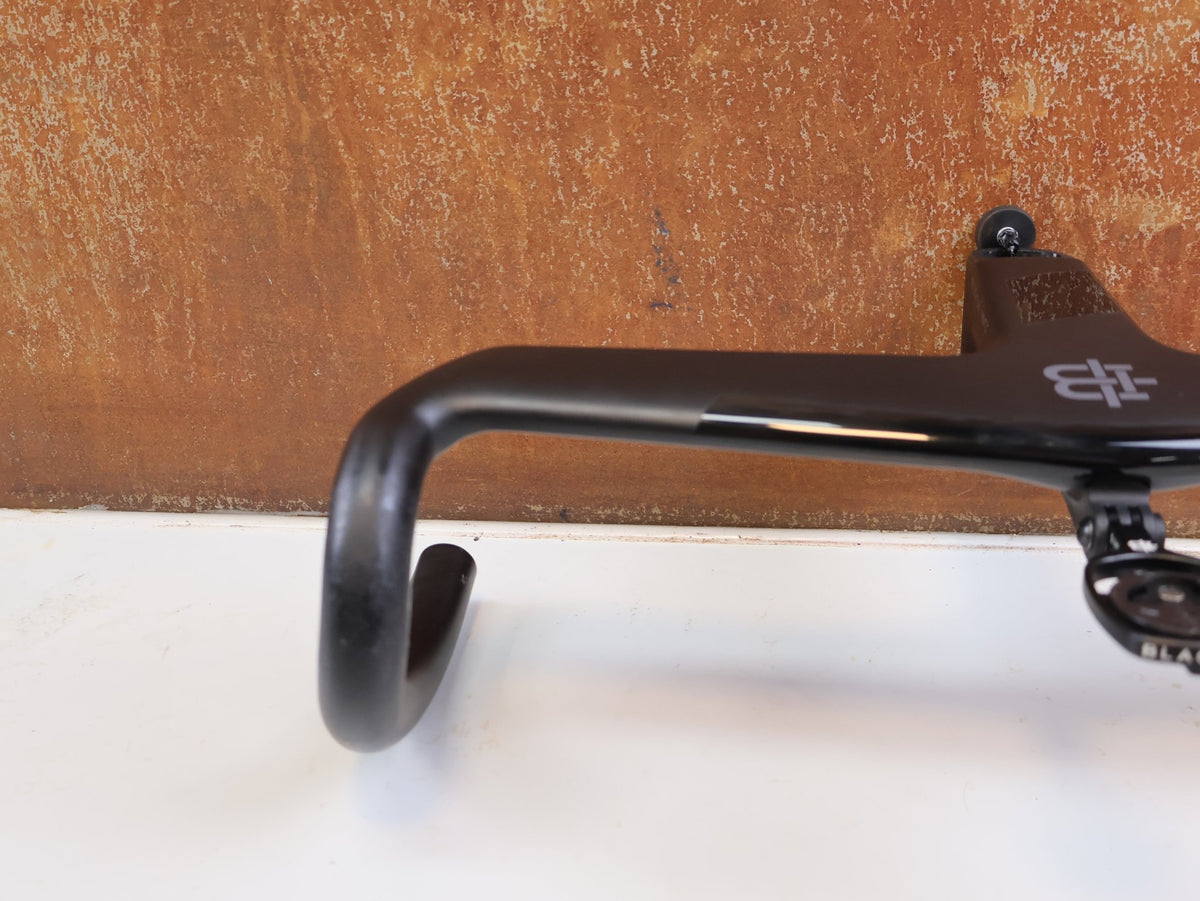

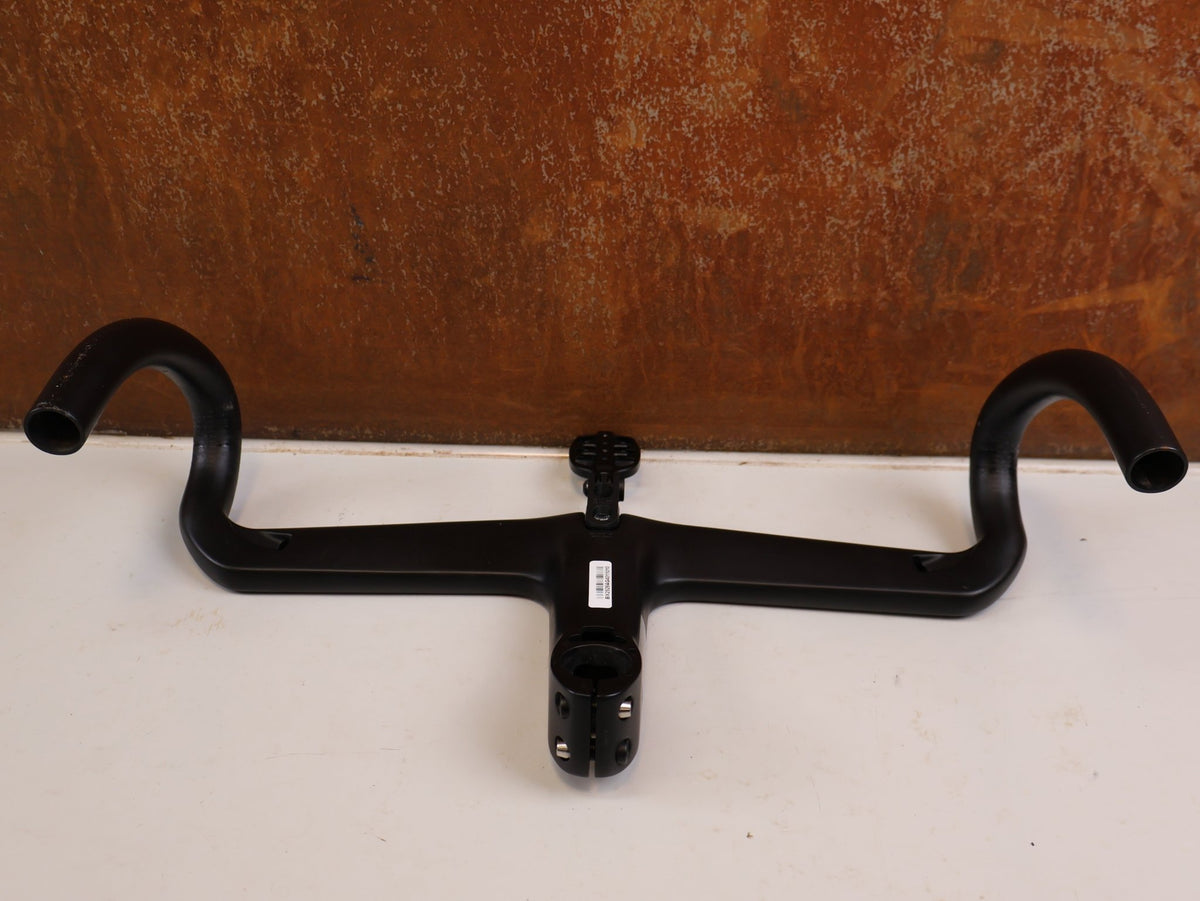

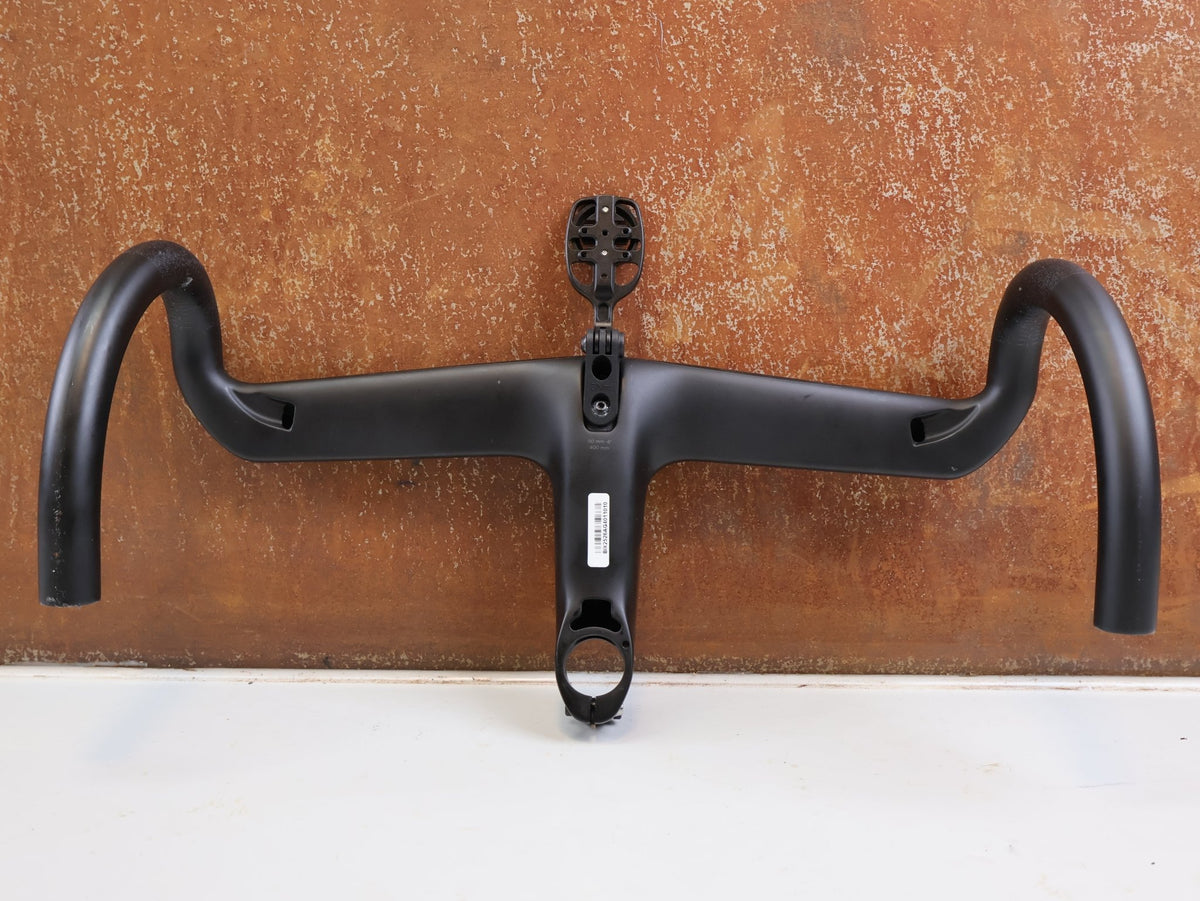

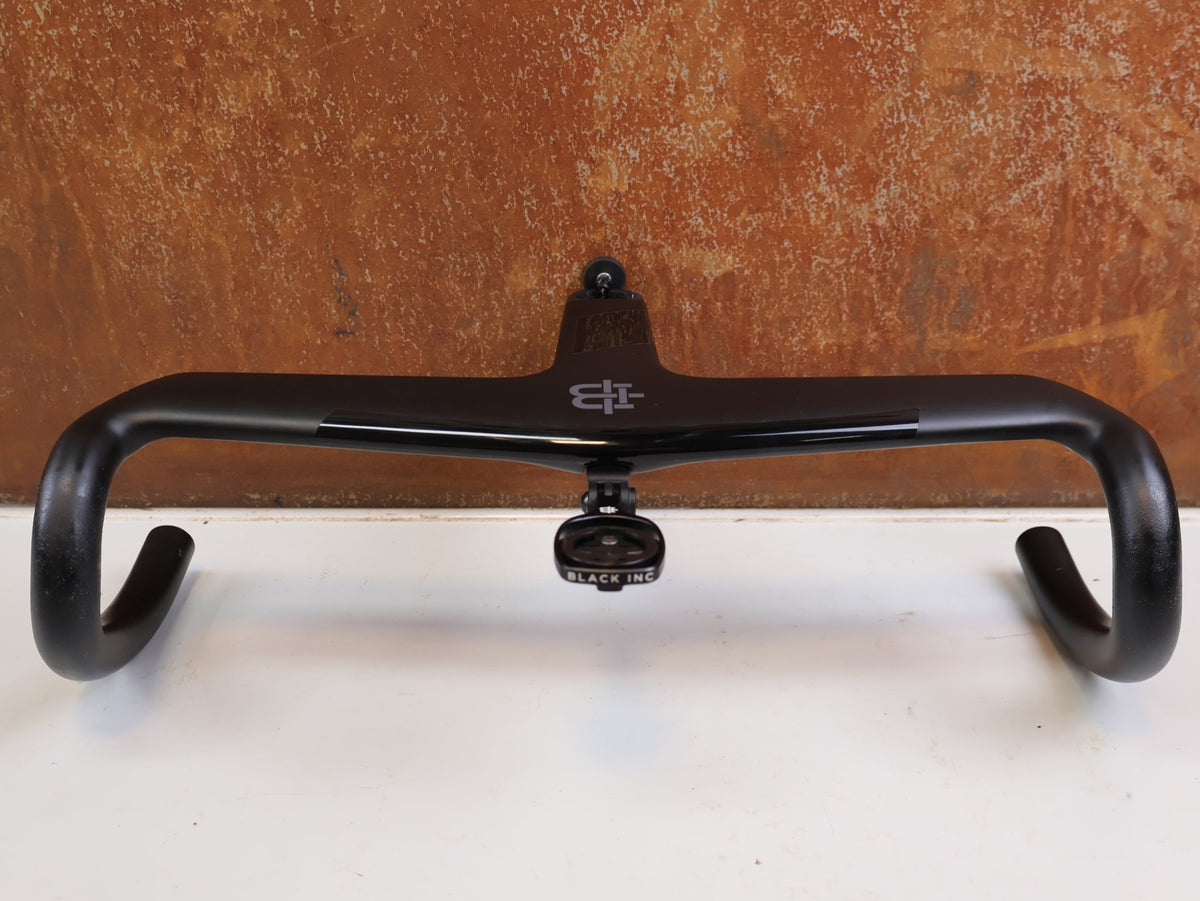

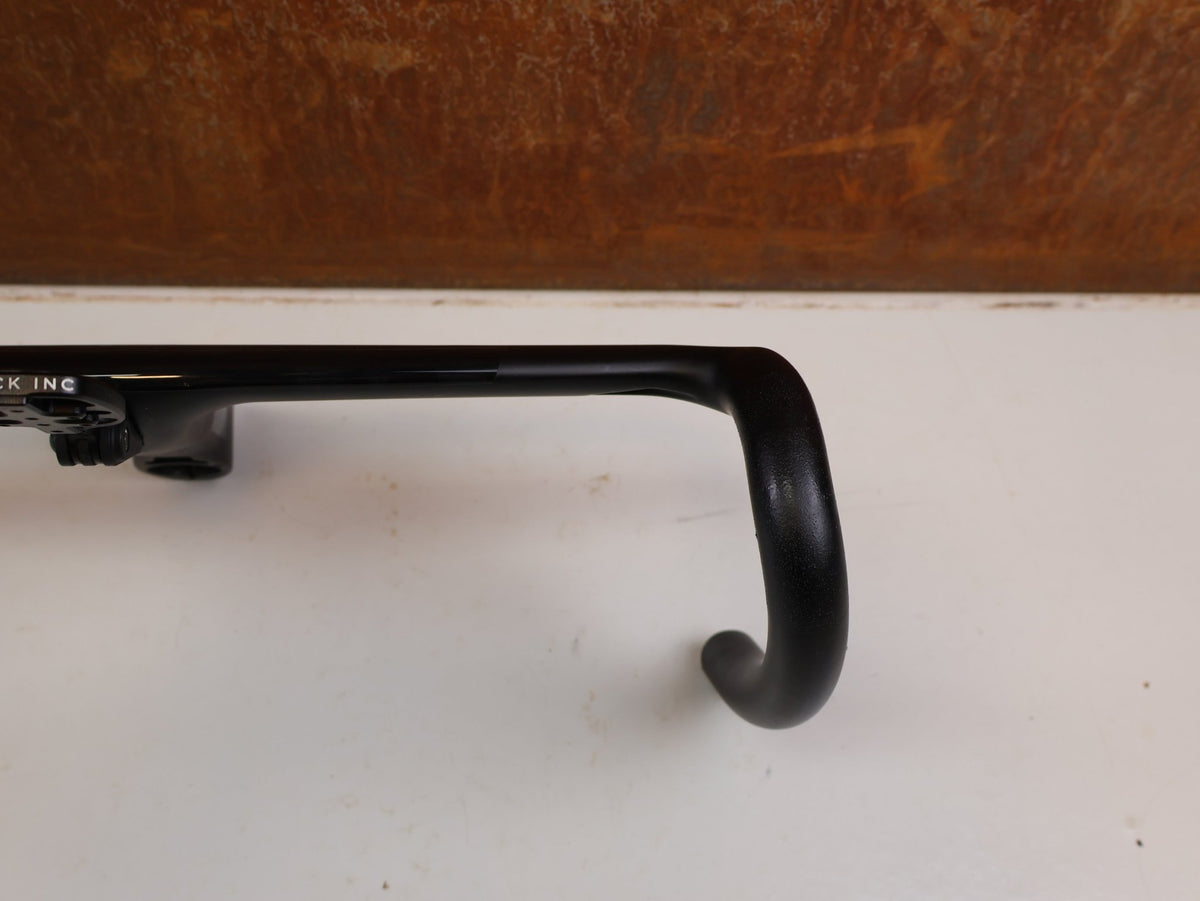

BLACK INC INTEGRATED AERO BARSTEM AB02 CARBON COCKPIT (40 CM WIDTH | 110 MM STEM LENGTH | REACH 80 MM | DROP 120 MM | 7° FLARE | 425 G INCL. MOUNT | INCL. FACTOR OSTRO VAM STEM CAP & SPACERS | FULL CABLE INTEGRATION | UD MATTE & GLOSSY)
The Black Inc Integrated Aero Barstem AB02 sets a new standard for integrated carbon cockpits in the high-end road and gravel sectors. Developed in close collaboration with seven-time Grand Tour winner Chris Froome and optimized for the Factor OSTRO VAM, this stem-and-bar unit combines leading aerodynamics, outstanding ergonomics, and a total weighed weight of just 425 g (including the installed computer mount).
The sophisticated design with a 7° flare positions the shifter/brake levers at a narrow, extremely streamlined width of **400 mm**, while the drops flare out to **429 mm**. This drastically reduces the frontal area of the rider and bike while ensuring maximum control during sprint efforts or on rough gravel surfaces. The medium-deep 40-mm top bar profile with a 3° backsweep noticeably outperforms the competition in the wind tunnel and guarantees an extremely natural, comfortable hand position during climbing sections.
Features & Technical Data
• Brand / Model: Black Inc / Integrated Aero Barstem AB02
• Handlebar width (shifter / hoods): 400 mm (center to center)
• Handlebar width (drop / lower bar): 429 mm (center to center)
• Stem length: 110 mm
• Stem angle: -6°
• Steerer tube clamp (steerer diameter): 1 1/8" (28.6 mm)
• Geometry: Reach 80 mm | Drop 120 mm | Flare 7° | Backsweep 3° | Stack height 39 mm
• Weight (weighed): approx. 425 g (including the mounted Black Inc computer mount)
• Ergonomics & design: Compact bend (brake bosses 5 mm closer to the drop for modern Shimano/SRAM shifters) | Chamfered corners for maximum wrist freedom
• Cable routing: Fully integrated internal cable routing (exclusive to electronic shifting & hydraulic disc brakes)
• Finish / appearance: UD Carbon Matte & Glossy (elegant two-tone finish)
• Intended use: Performance Road / Aero Road / Competition Gravel
• RRP / Price: €810.00
• Included accessories:

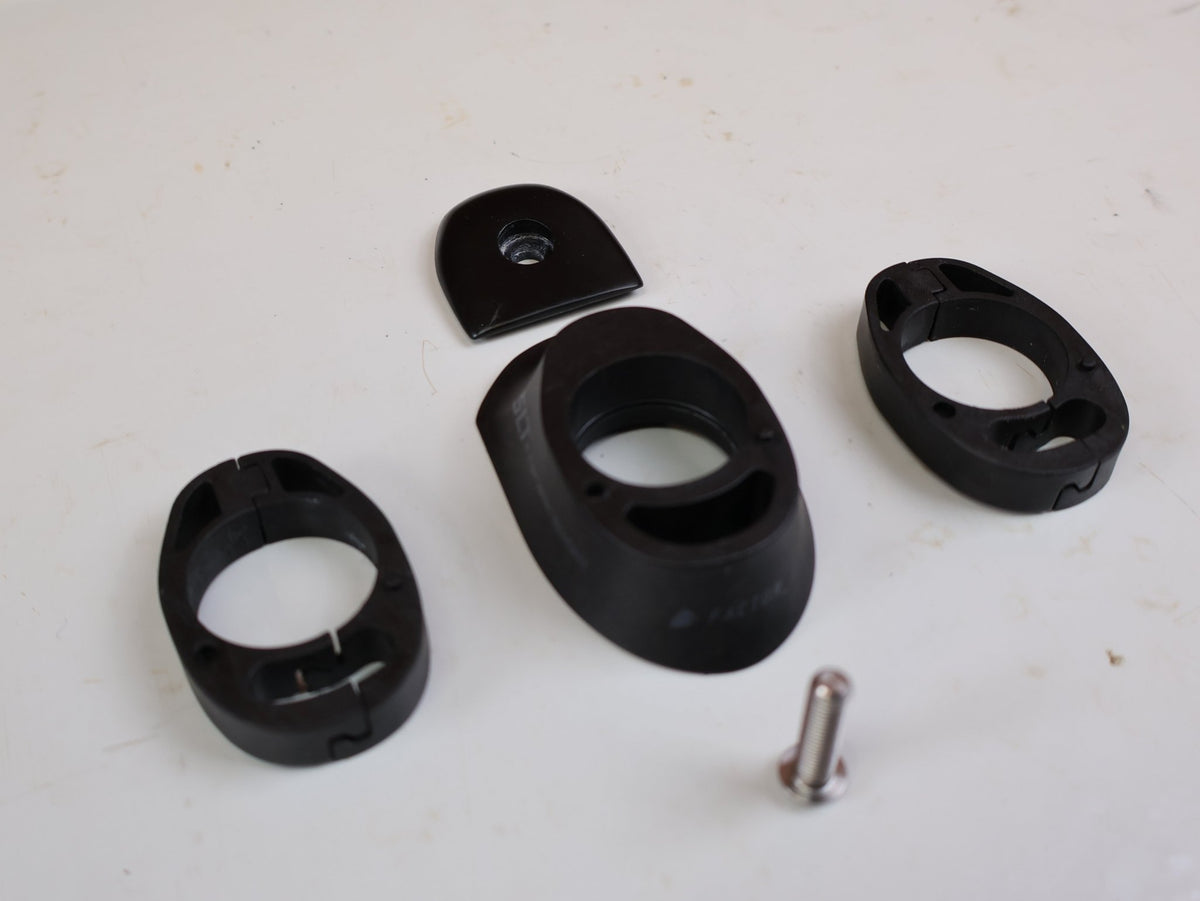

– Original stem cap for Factor OSTRO VAM incl. spacers (2x 1 cm spacers)
– Out-front Black Inc Computer Mount V10 (GoPro-style adapter for mounting Wahoo & Garmin bike computers as well as lights/cameras; *not compatible with Garmin Edge 1050 & Wahoo ELEMNT ACE*).
Scope of delivery

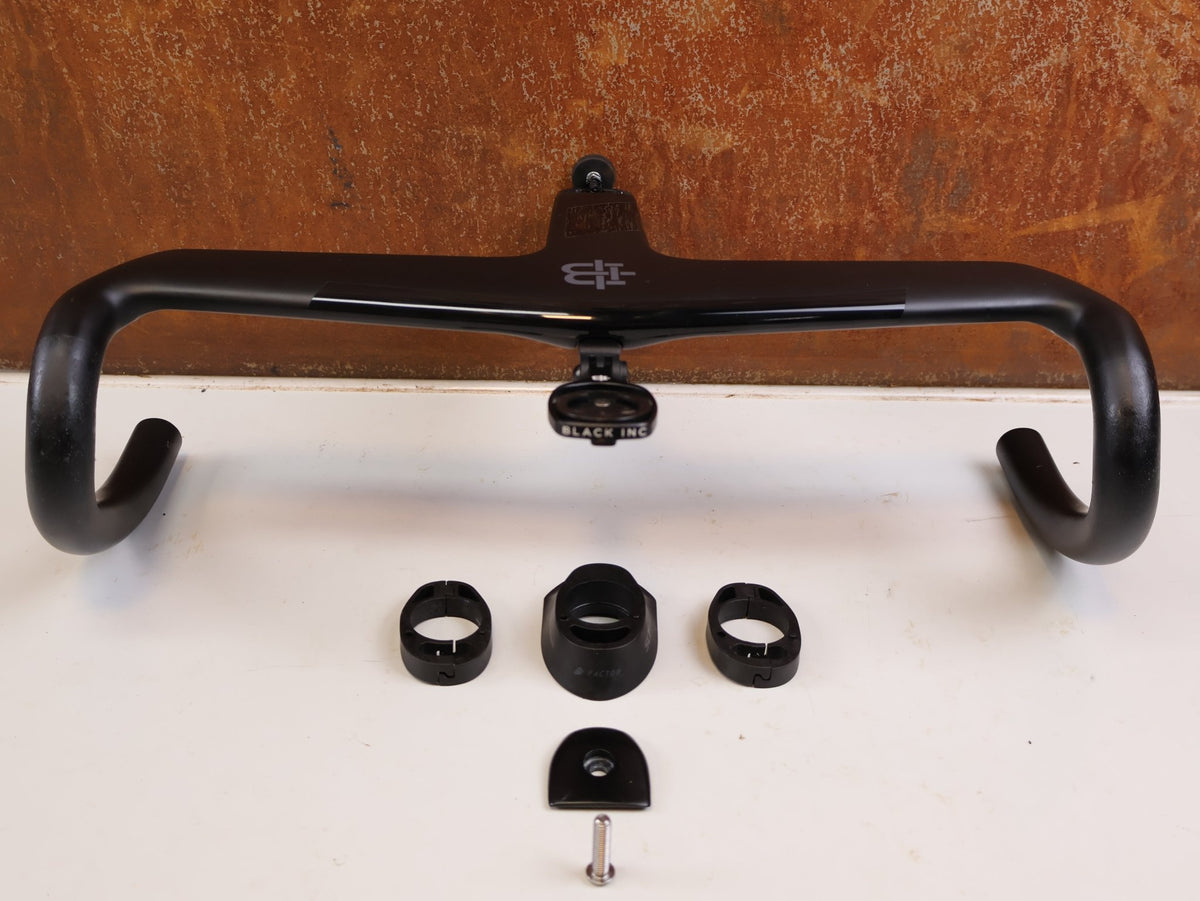

1x Black Inc Integrated Aero Barstem AB02 Carbon Cockpit (40 cm / 110 mm), 1x Factor OSTRO VAM stem cap & spacer set (2x 1 cm spacers), 1x Black Inc Computer Mount V10 (installed, incl. Garmin insert) without GoPro mount.
Conclusion
The benchmark among aero cockpits: Developed with Chris Froome, the Black Inc Integrated Aero Barstem AB02 offers uncompromising aerodynamics, perfectly tuned ergonomics, including the OSTRO VAM stem cap/spacer kit and maximum cable integration at a light 425 grams including the mount.
