SHIMANO ULTEGRA WH R8170 C50 CARBON WHEELSET TUBELESS HG
SHIMANO ULTEGRA WH R8170 C50 CARBON WHEELSET TUBELESS HG
Couldn't load pickup availability

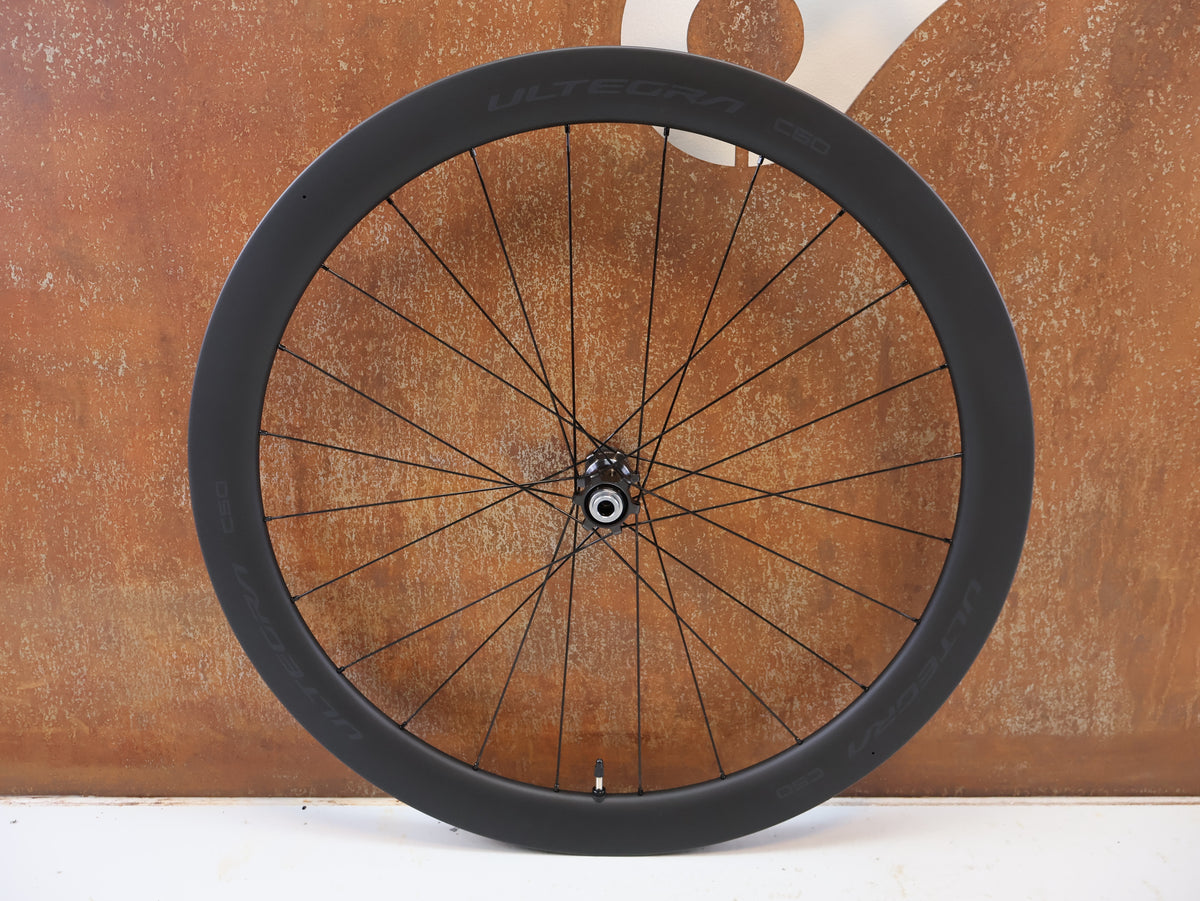

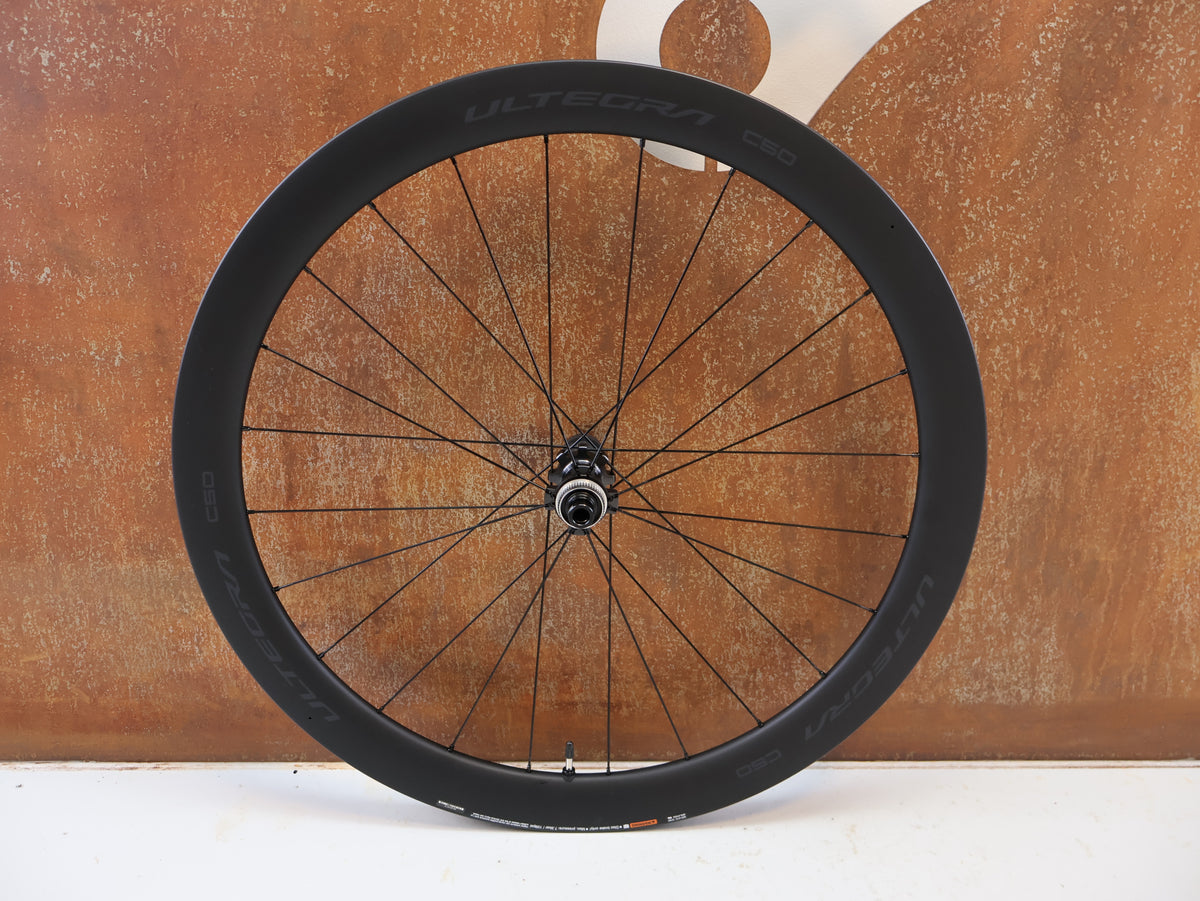

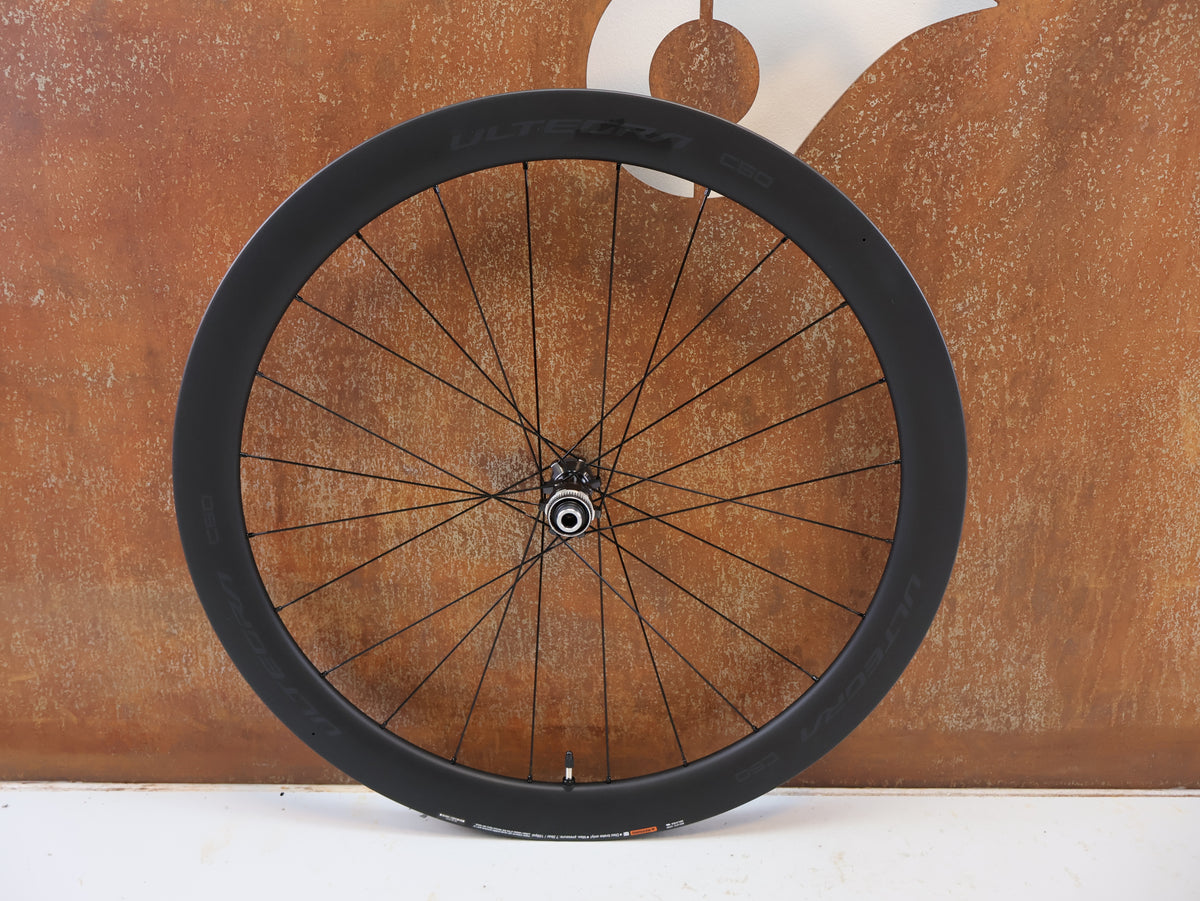

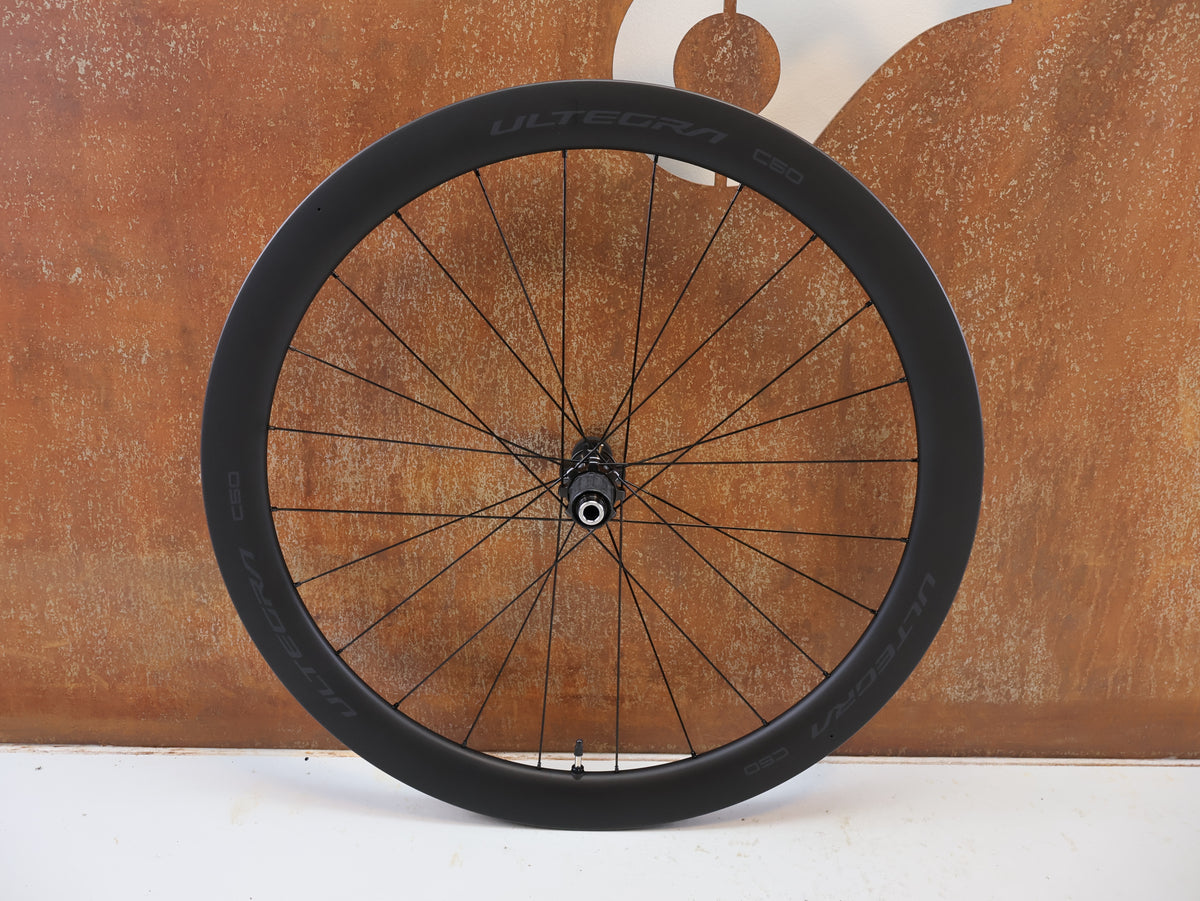

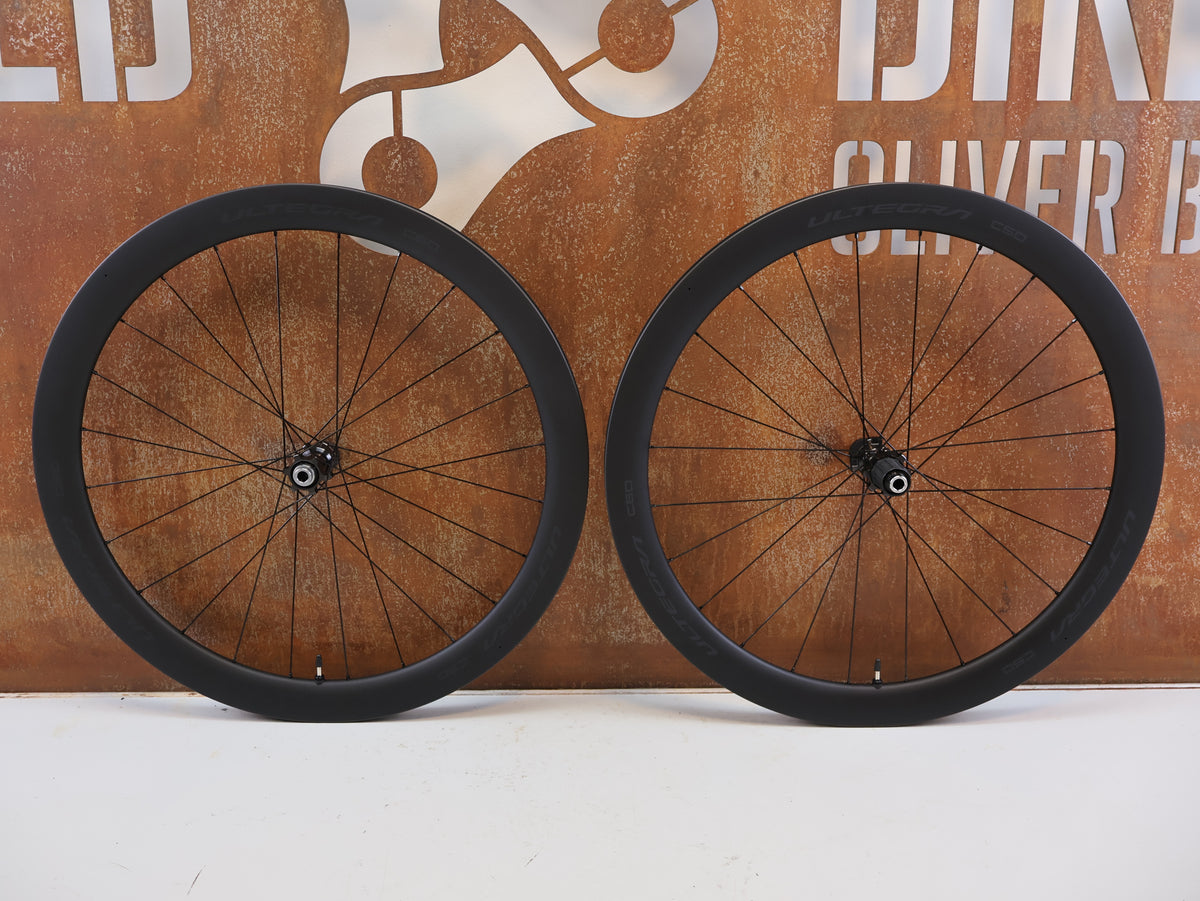

SHIMANO ULTEGRA WH-R8170 C50 CARBON WHEELSET (28 INCH | C50 TUBELESS | CENTER LOCK | 1618 G | SHIMANO HG 11/12-SPEED)
The Shimano Ultegra WH-R8170 C50 carbon wheelset is the perfect all-rounder for aerodynamic efficiency and high speeds on any terrain. The **50 mm deep full carbon rim** offers the ideal balance of excellent wheel dynamics, minimal air resistance, and agile climbing performance. The weighed total weight is a light **1,618 g** (front 717 g / rear 901 g incl. tubeless rim tape and valves).

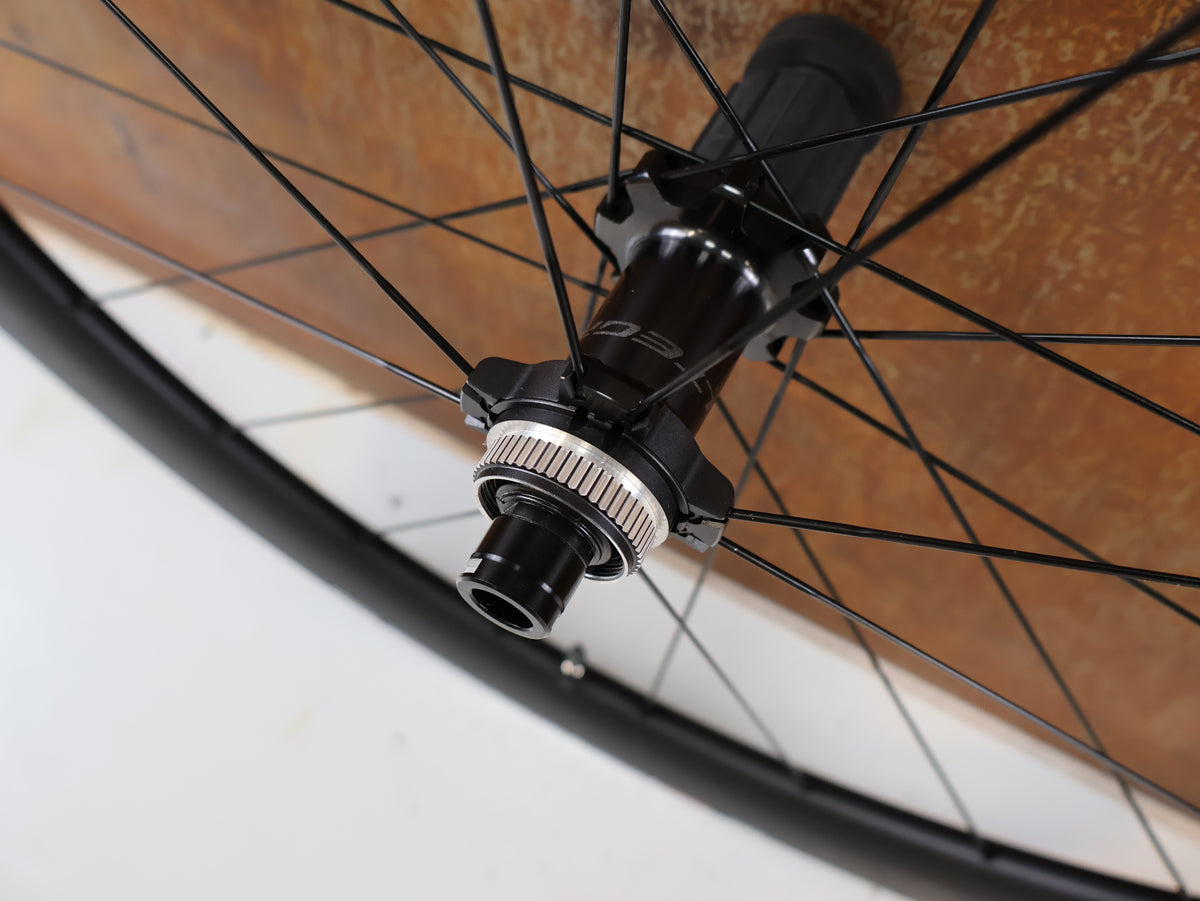

With a modern **internal rim width of 21 mm**, the tubeless-ready wheelset is optimally designed for wider road bike tires. Shimano recommends a tire width of **25-622 mm to 32-622 mm** (according to ETRTO) for this wheelset. The precise Shimano cup-and-cone bearings of the Ultegra R8100 series guarantee high durability and smooth rolling, while the **Center Lock disc mount** and 12 mm thru-axles (100x12 mm front / 142x12 mm rear) ensure stiff and reliable braking performance. The freehub body is compatible with Shimano HG 11-speed and 12-speed road cassettes.
Features & Specifications
• Brand / Model: Shimano Ultegra WH-R8170 C50 (WH-R8170-C50-TL)
• Intended Use: Road bike / Road / Competition / Aero All-rounder

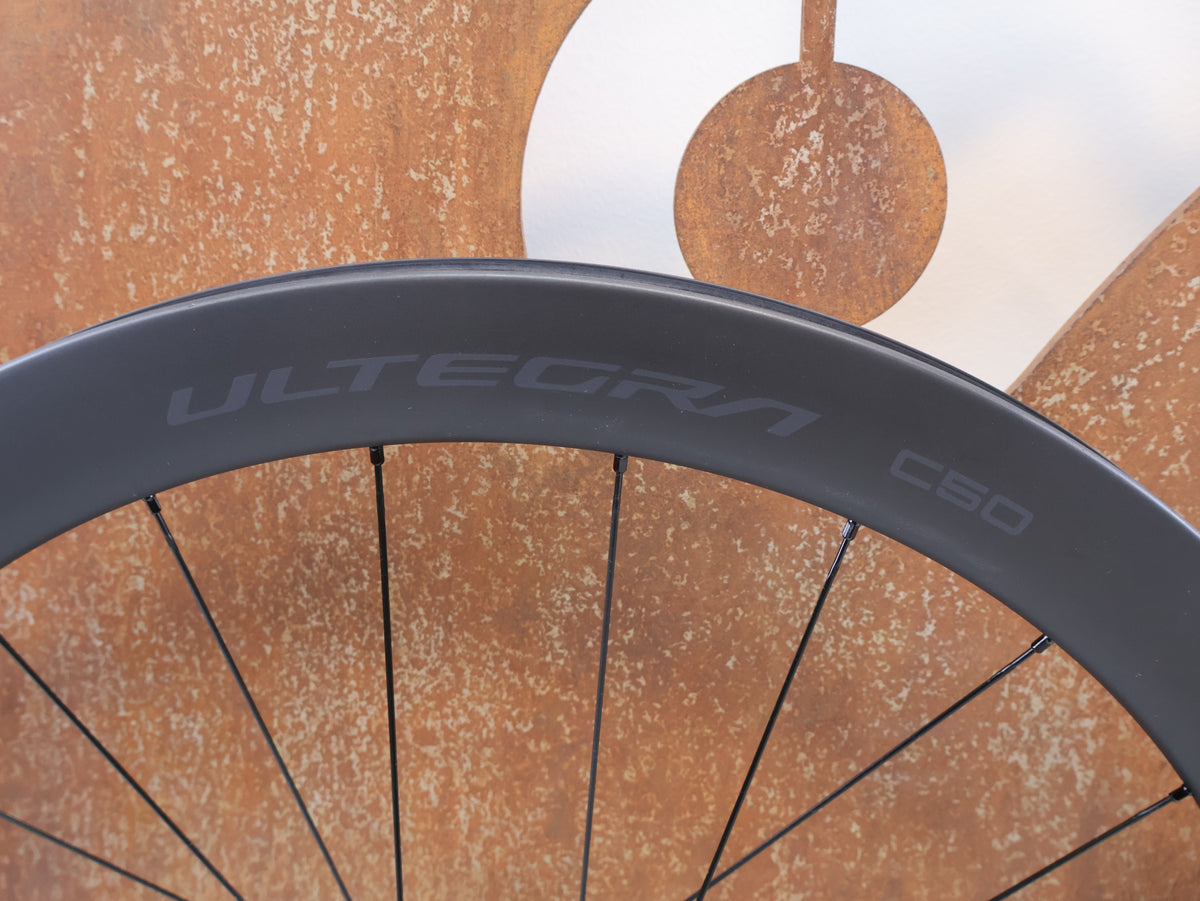

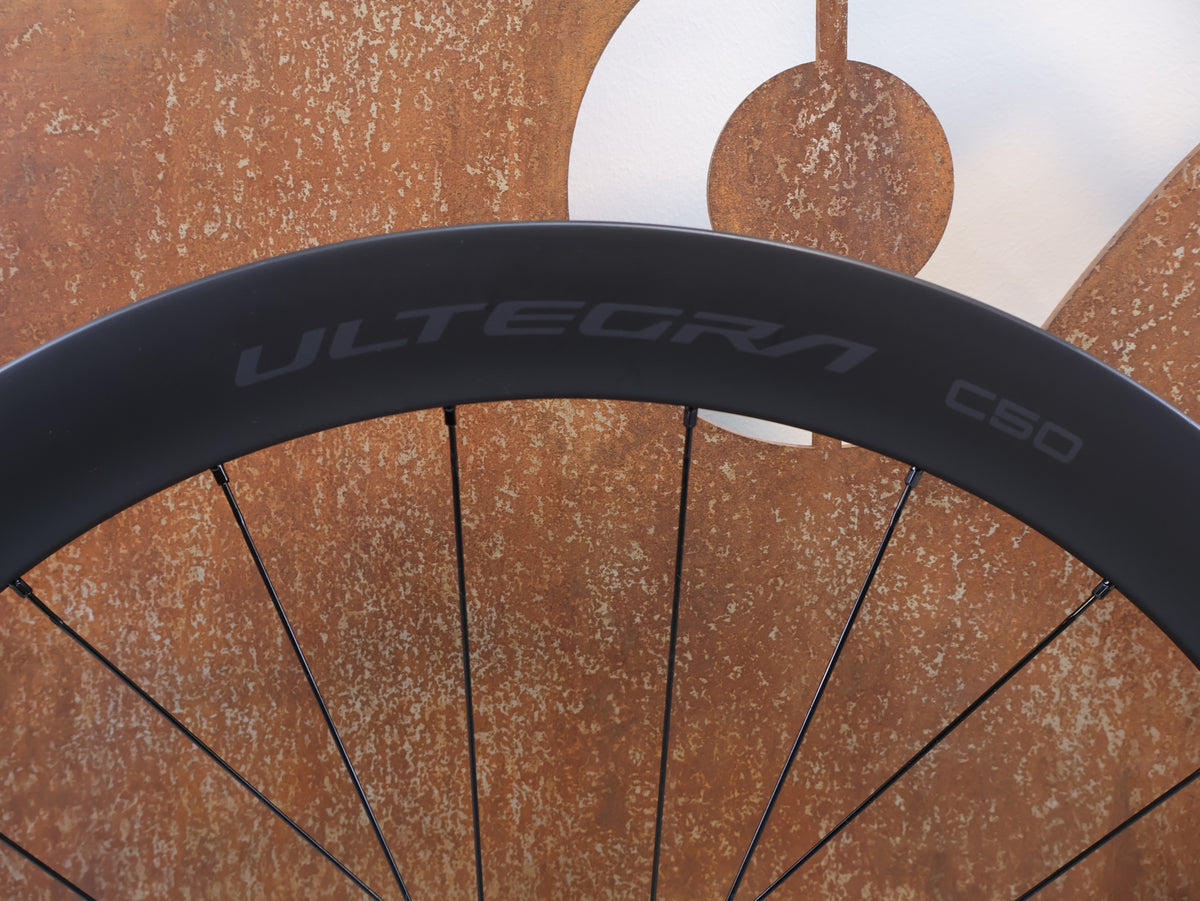

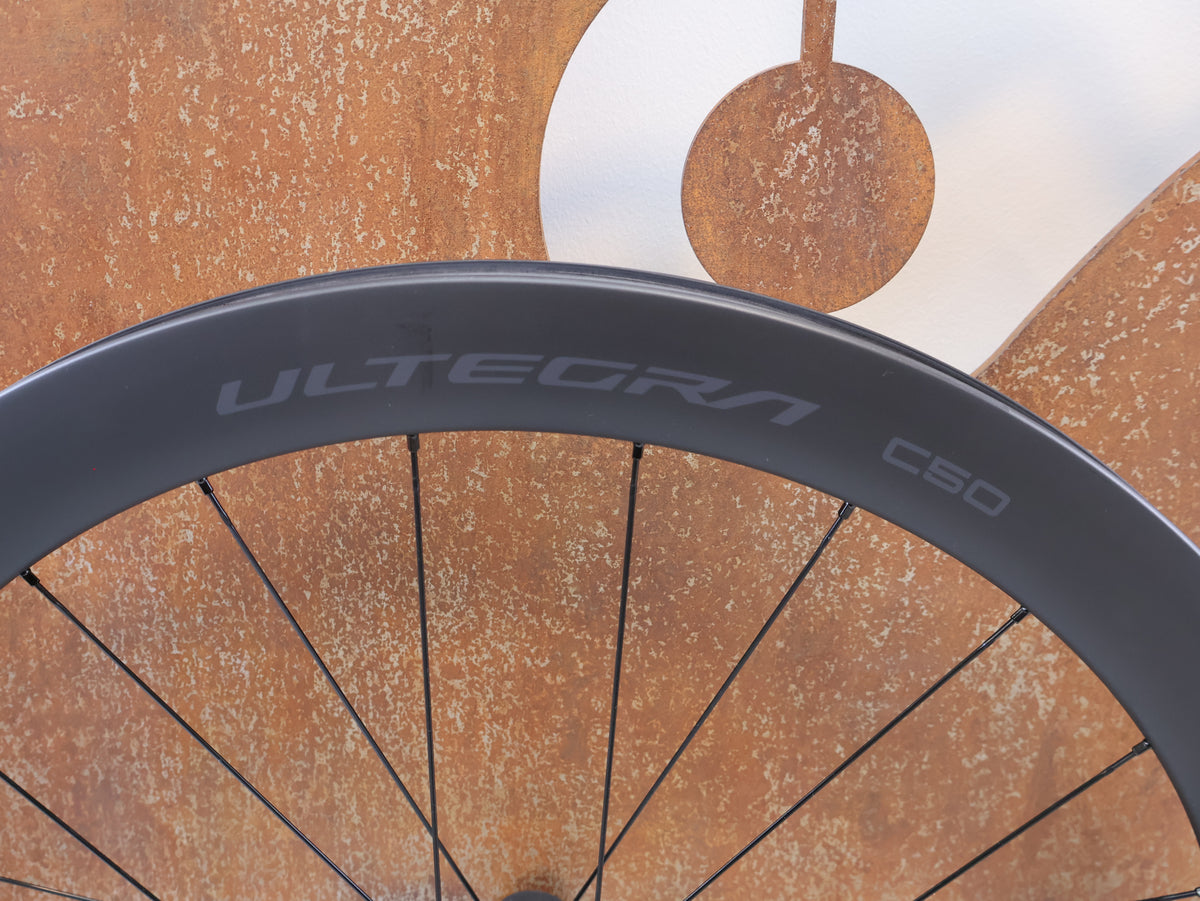

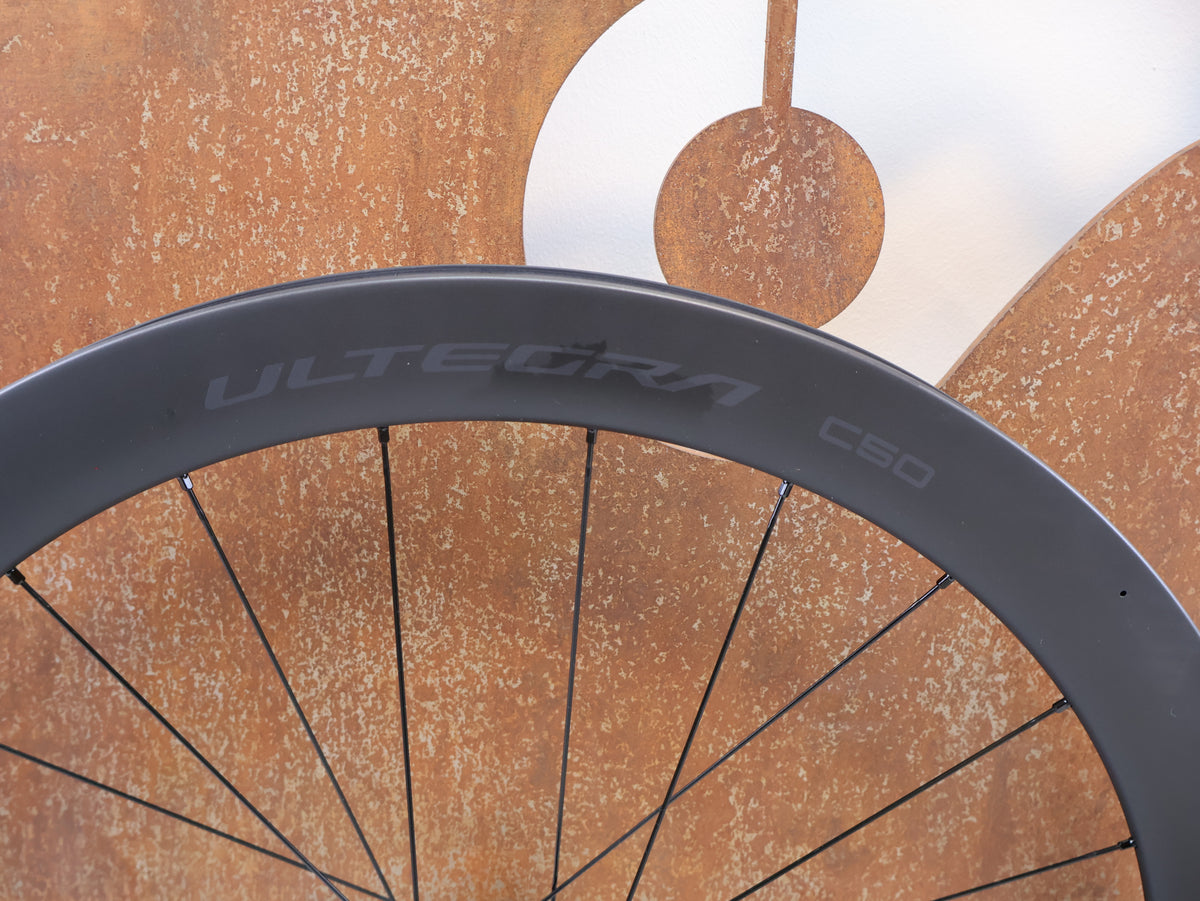

• Wheel Size & Material: 28" (700C) | Full carbon rim (50 mm profile height)

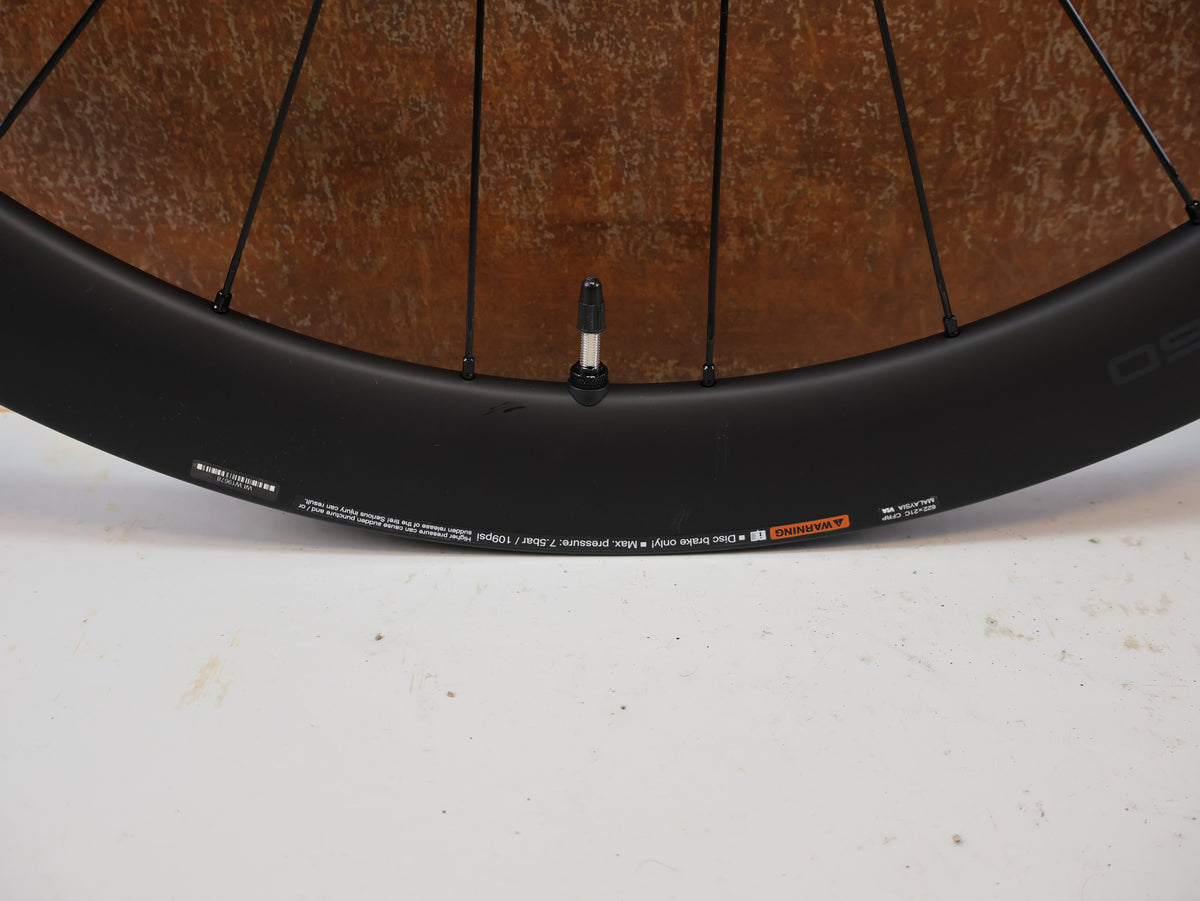

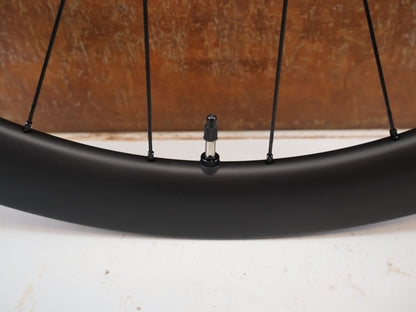

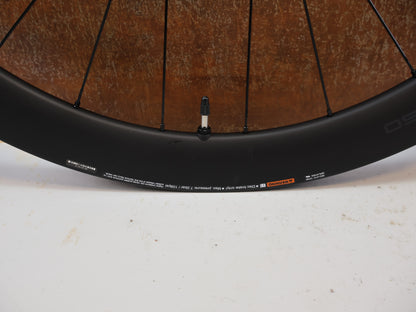

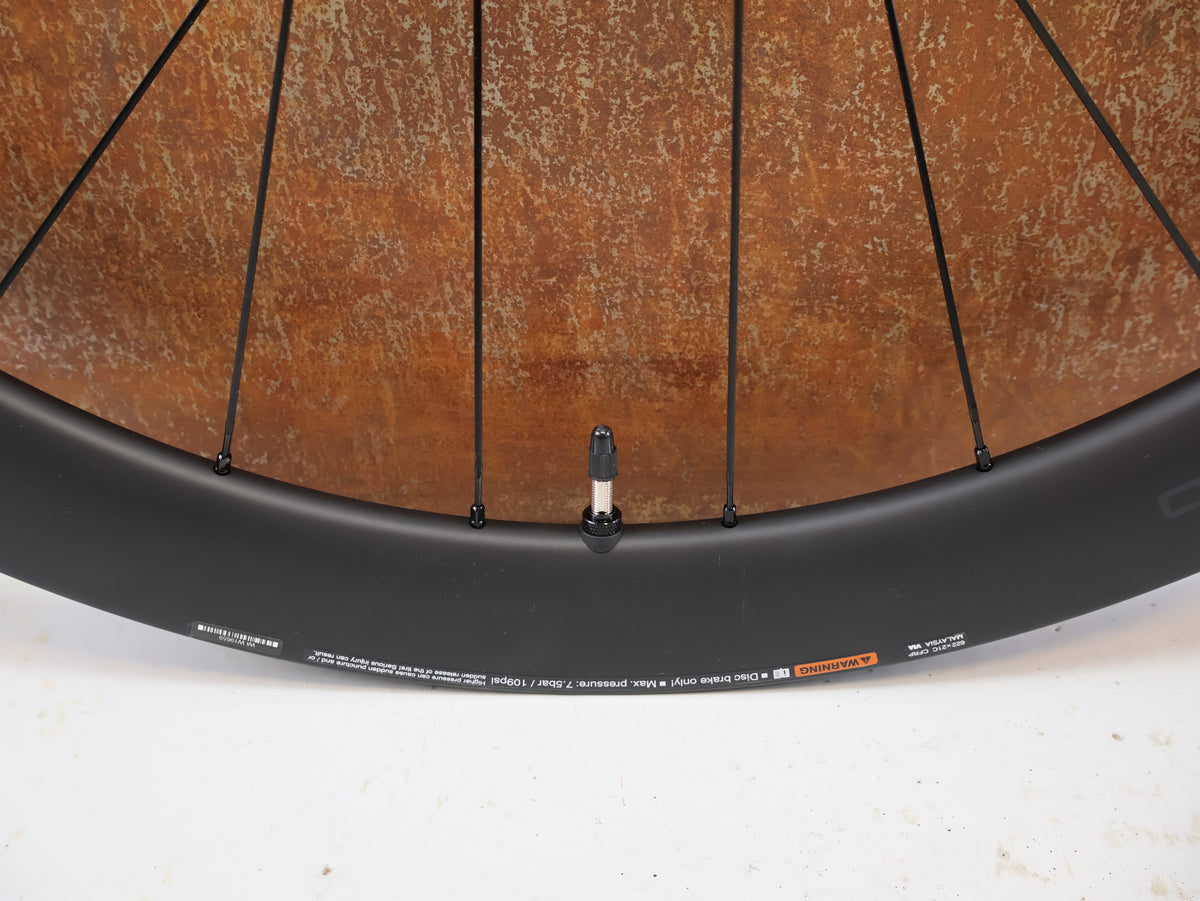

• Internal Width & Tire Type: 21 mm internal width | Tubeless Ready
• Recommended Tires (Manufacturer): 25-622 mm to 32-622 mm (ETRTO)
• Axle Standard: Thru-axle front 100x12 mm | rear 142x12 mm

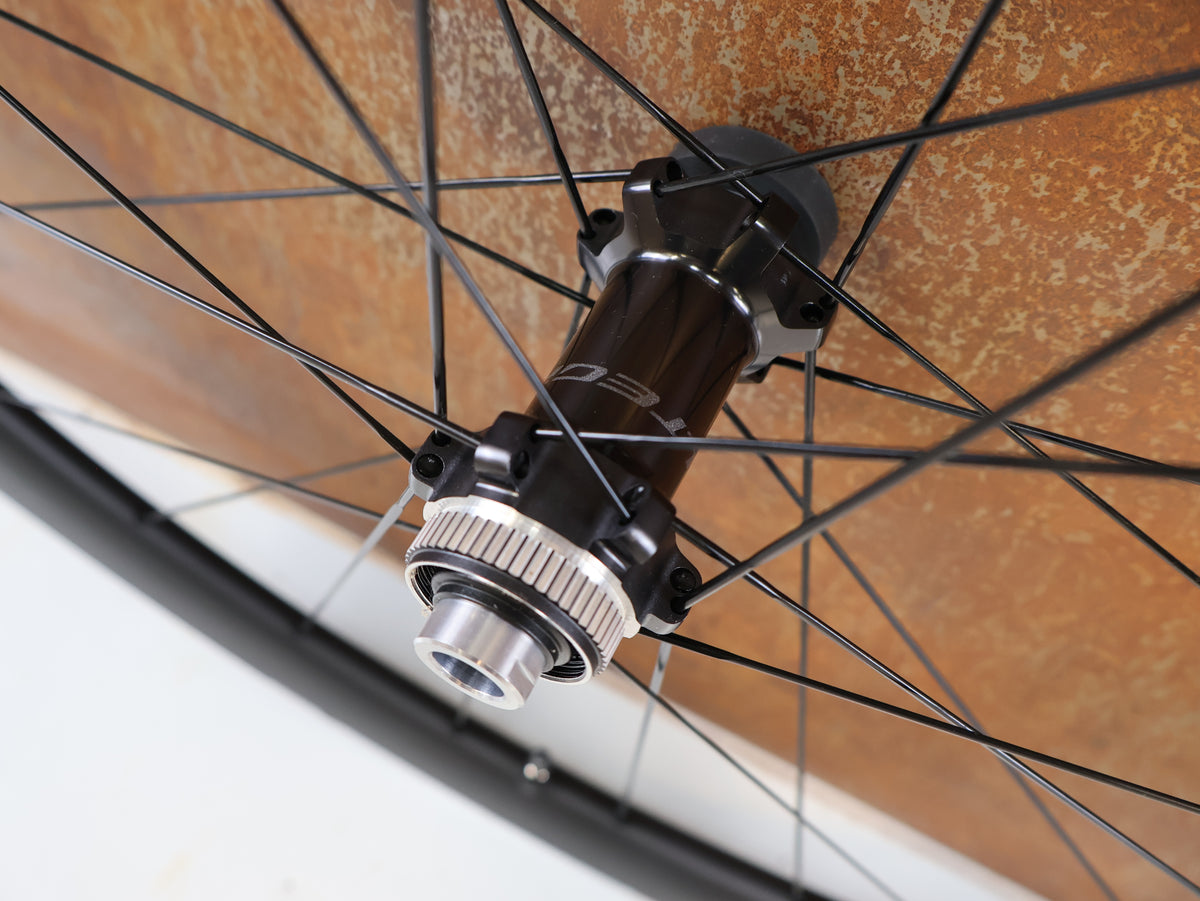

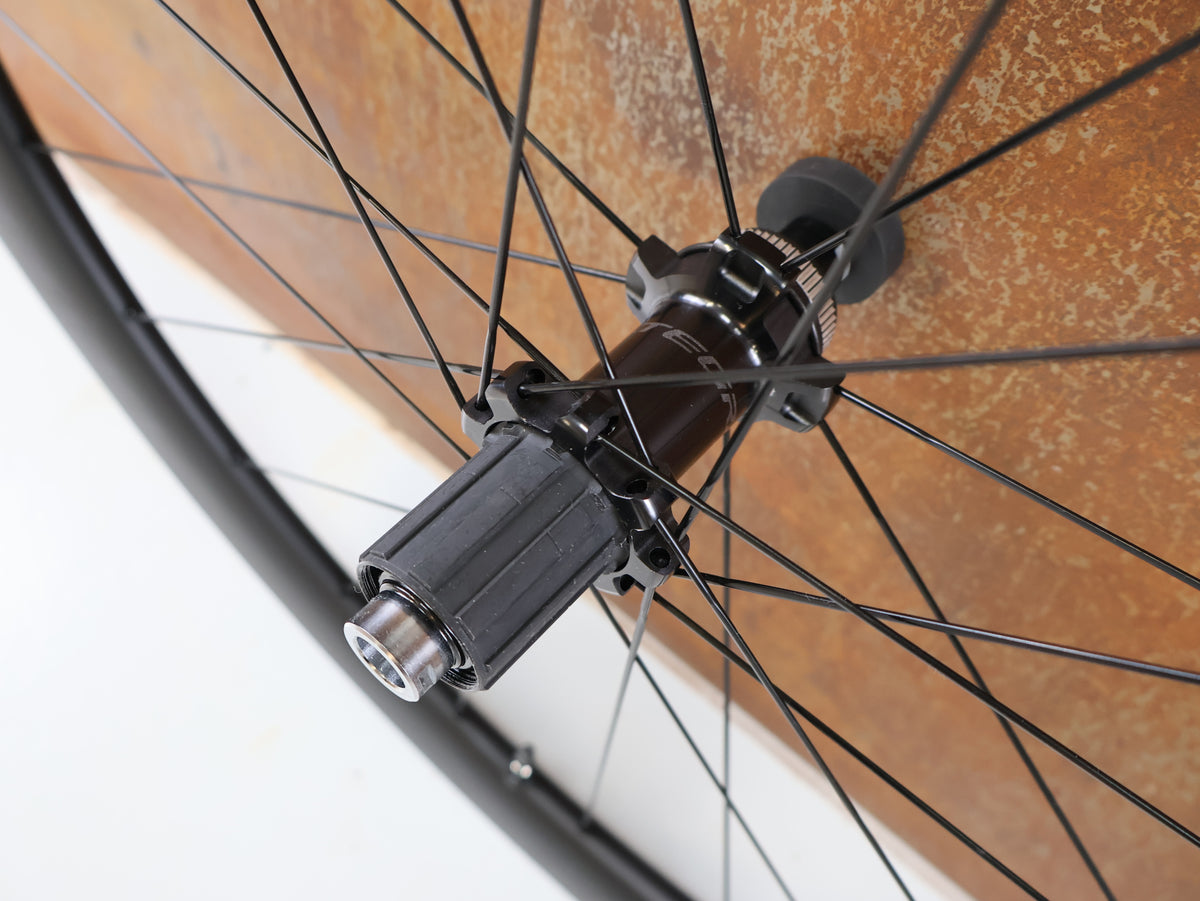

• Brake System & Freehub: Disc Center Lock | Shimano HG (11-speed & 12-speed Road)

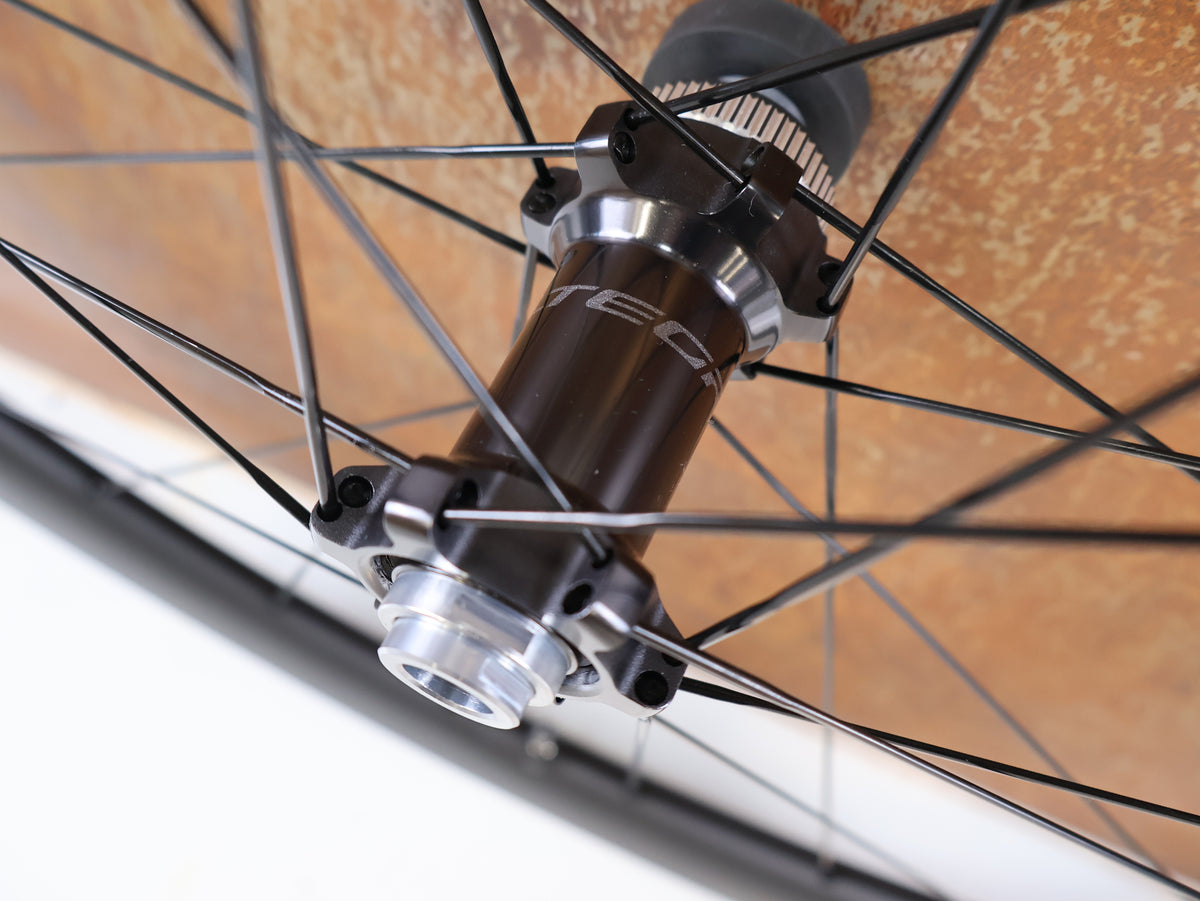

• Bearings & Spokes: Adjustable cup-and-cone bearings | 24 stainless steel spokes (front/rear) | Aluminum nipples
• Weight (weighed): Front approx. 717 g | Rear approx. 901 g (incl. TLR tape & valves) | Total: approx. 1,618 g
• Version: Complete wheelset (front and rear wheel)
• MPN / EAN: EWHR8170C50LFERED | 4550170891503
Scope of Delivery

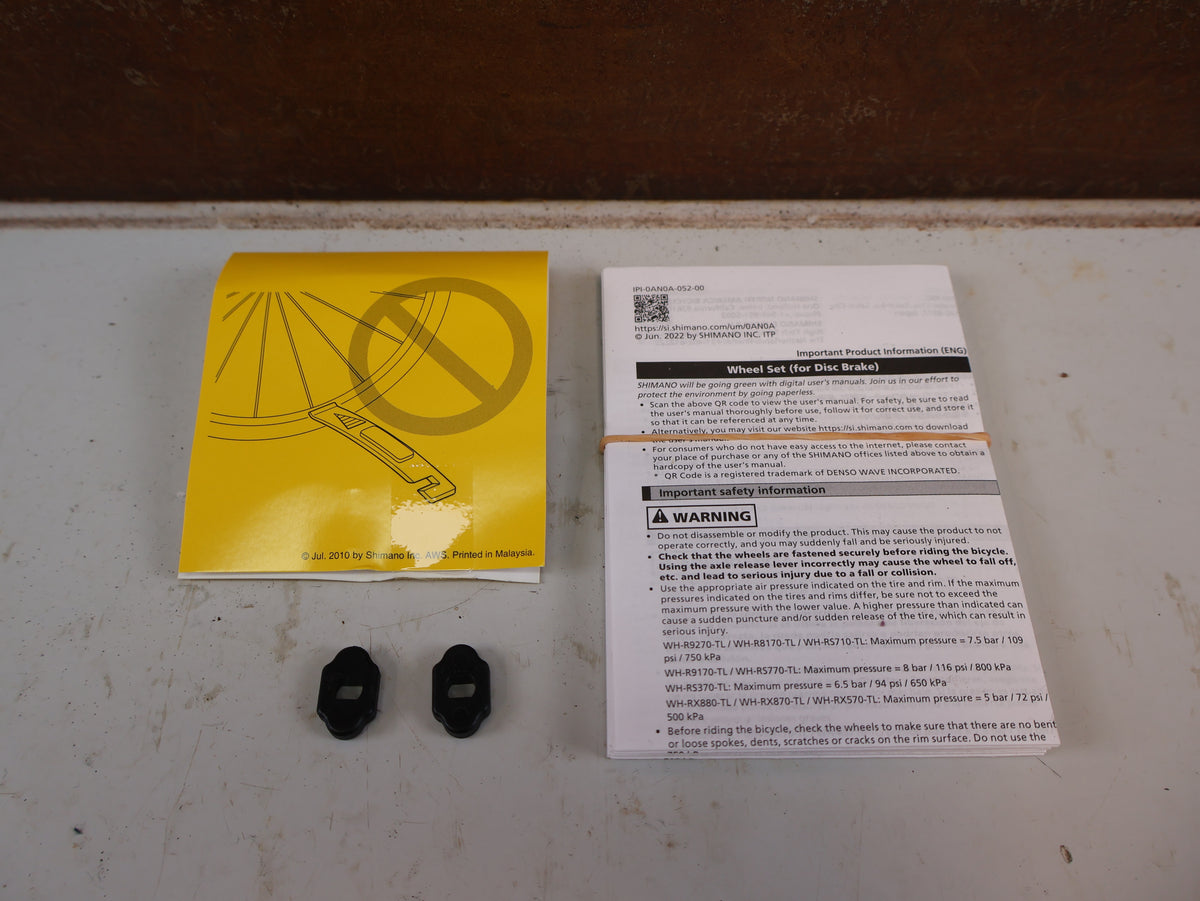

1x Shimano Ultegra WH-R8170 C50 carbon wheelset (front wheel & rear wheel, tubeless tape & valves pre-installed).
Conclusion
Aerodynamic all-round carbon wheelset for road bikes: Shimano WH-R8170 C50 with 21 mm internal width, tubeless ready, Center Lock, 1,618 g total weight, and Shimano HG 11/12-speed compatibility.
